Product Details:
|
| Interface Standard: | CCS | Output Current: | 0-100A |
|---|---|---|---|
| Output Power: | 120KW | Input Voltage: | 150-1000V |
| Installation Method: | Floor-standing | Start-up And Billing Method: | RFID,plug And Charge,Scan QRCode |
| Input Voltage: | Three Phase AC 380V±20%(ABC+N+PE) | Input Current Range: | AC 0A~92A, 50mm Cable |
| Grid Frequency: | 50Hz±10Hz | Output Current: | 60KW DC 0 ~100A |
| Output Voltage: | DC 200V~1000V | IP Protection Level: | IP54 |

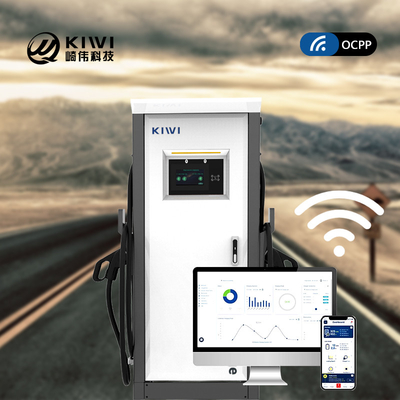

| OCPP: | OCPP 1.6J/1.5J | AC Leakage: | RCD |
| Port: | Shenzhen,Foshan,HK,etc. | ||
| Highlight: | 1000V OCPP EV Charger,120KW OCPP EV Charger,120KW fast ev charger |
||

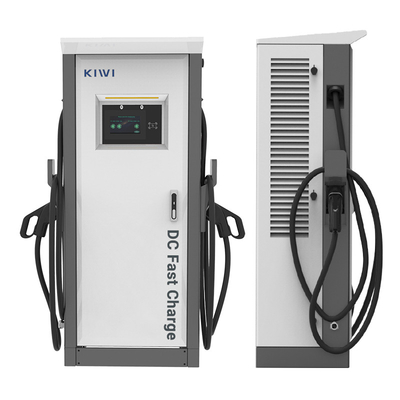

DC 200V-1000V Output 120KW Commercial Fast OCPP EV Charger for Plug and Charge Billing
|
Output power
|
60KW
|
120KW
|
150KW
|
||
|
Output Current
|
0 ~ 200A
|
0 ~ 400A
|
0 ~ 500A
|
||
|
Input Voltage
|
AC 380V 50/60HZ
|
|
|
||
|
Output Voltage
|
DC 200V ~ 1000V
|
|
|
||
|

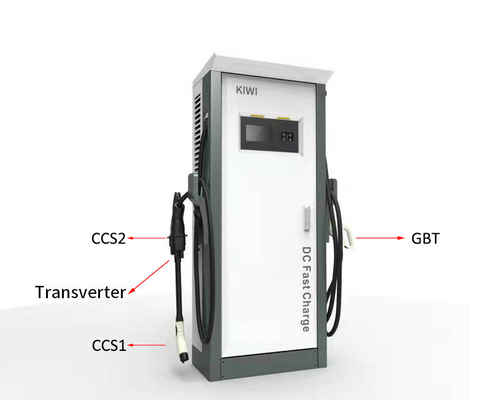

Charging Connector
|
CCS1 / CCS2 / CHAdeMO / GBT
|
|
|
||
|
Charging Standard
|
EC61851, IEC62196, ISO15118
|
|
|
||
|

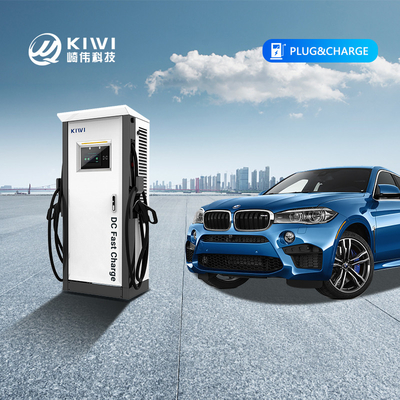

Charging Mode
|
Plug&Charge / RFID / APP / OCPP(1 .5J / 1.6J)
|
|
|
||
|
Size
|
700 * 340 * 1670mm
|
|
|
||
|
Weight
|
>258kg
|
|
|
||
|
Input Current Range
|
AC 0 ~ 182A, 50mm cable
|
AC 0 ~ 230A, 75mm cable
|
AC 0 ~ 280A, 90mm cable
|
||
|

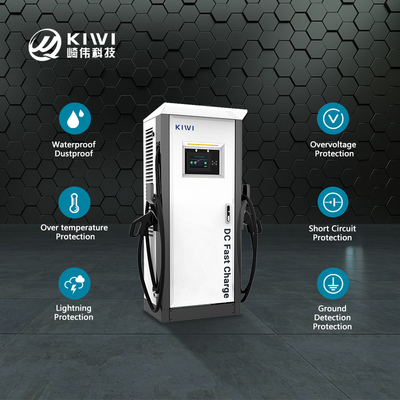

Leakage Protection
|
RCD AC 30mA
|
|
|
||
|
Plug Wire Length
|
5M ( Customizable)
|
|
|
||
|
Cooling Method
|
Wind cooling
|
|
|
||
|

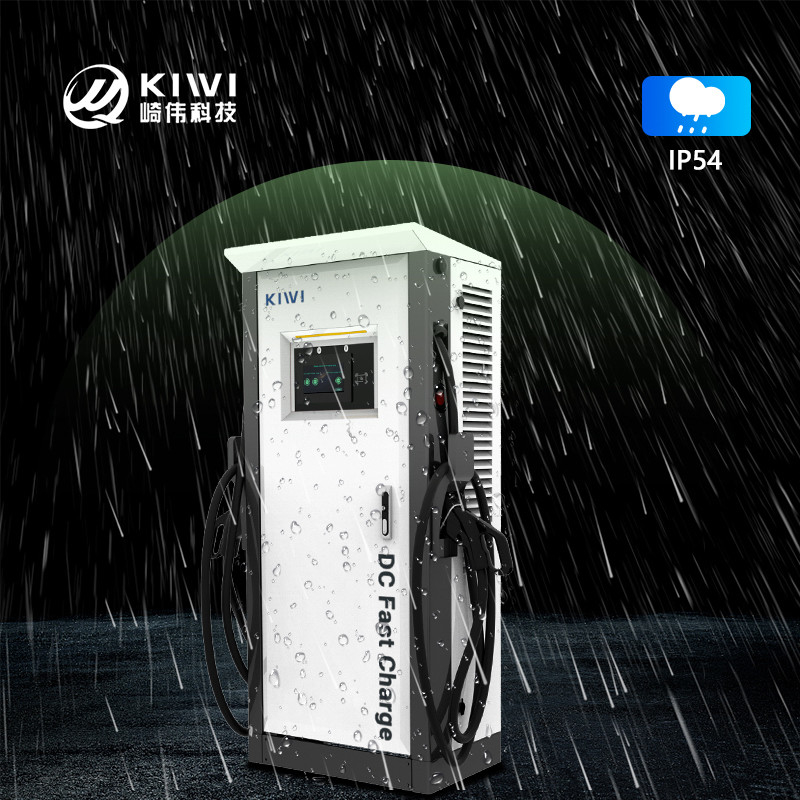

Protection Level
|
IP54
|
|
|
||
|
Operation Temperature
|
-20C ~ 55 ℃
|
|
|
||
|
Relative Humidity
|
5%-95%
|
|
|
||
|
Installation Method
|
Floor, column ( optional)
|
|
|
||
|
Altitude Limitation
|
≤ 2000m
|
|
|
||
|
Operation Life
|
≥ 10000
|
|
|
||
|
