Product Details:
|
| Interface Standard: | CCS1, CCS2, CHAdeMO, GB/T | Output Current: | 0-600A |
|---|---|---|---|
| Output Power: | 180-240KW | Input Voltage: | AC 380V 50/60H |
| Installation Method: | Floor-standing | Start-up And Billing Method: | RFID,plug And Charge,Scan QRCode |
| Input Voltage: | Three Phase AC 380V±20%(ABC+N+PE) | Input Current Range: | AC 0A~364A |
| Grid Frequency: | 50Hz±10Hz | Output Current: | DC 0~500A; DC 0~600A |
| Output Voltage: | DC 150V~1000V | IP Protection Level: | IP54 |
| OCPP: | OCPP 1.6J/1.5J | AC Leakage: | RCD B |
| Port: | Shenzhen,Foshan,HK,etc. | ||
| Highlight: | smart ev charger CHAdeMO,smart car charging station,smart ev charger 240KW |
||

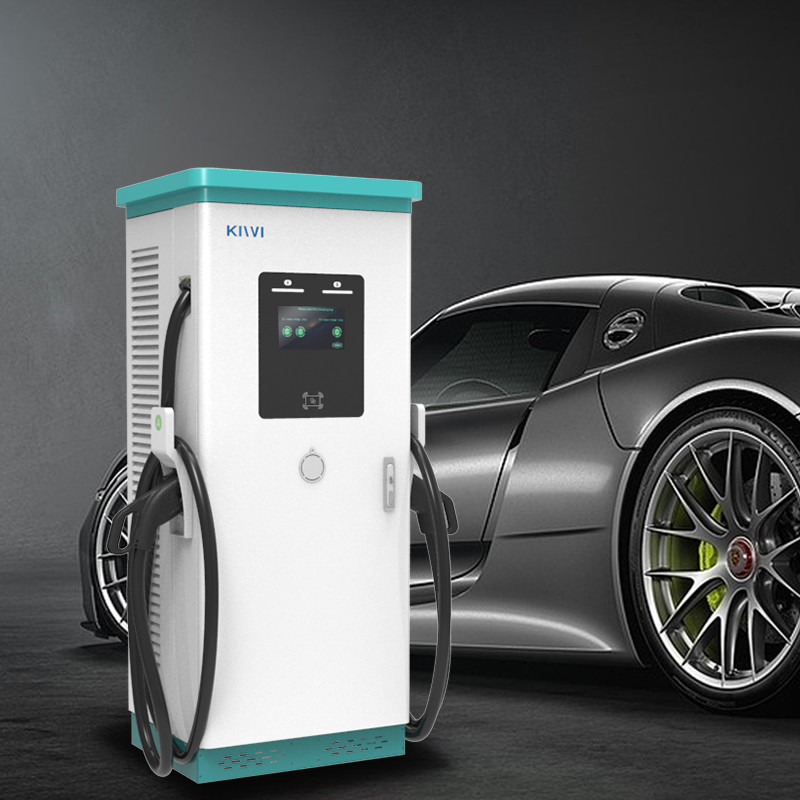

Smart EV Charger for Public Commercial DC Fast Charging Stations KIWI Best Project
|

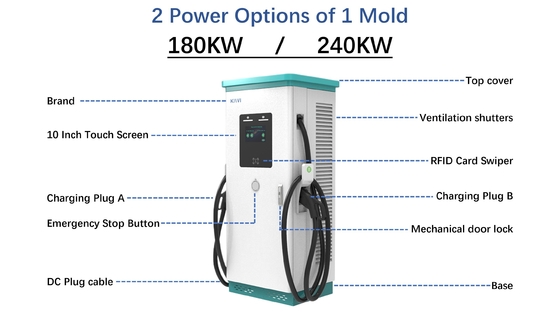

Power
|
180KW
|
|
240KW
|
|
|||
|
Output Current
|
0~500 A
|
|
0~600 A
|
|
|||
|
Input Voltage
|
AC 380V 50/60Hz
|
|
|
|
|||
|
Output Voltage
|
DC 200V~1000V
|
|
|
|
|||
|
Charging Connector
|
CCS1 / CCS2 / CHAdeMO / GBT
|
|
|
|
|||
|
Charging Standard
|
IEC61851, IEC62196, ISO15118
|
|
|
|
|||
|

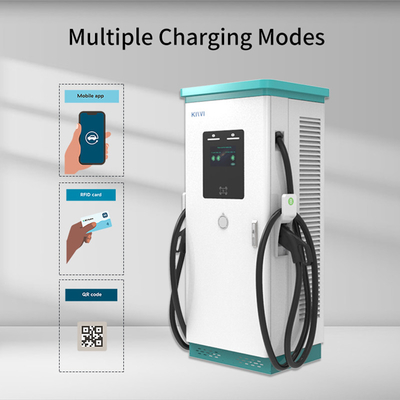

Charging Mode
|
Plug&Charge/RFID/APP/OCPP(01.5j/1.6j)
|
|
|
|
|||
|

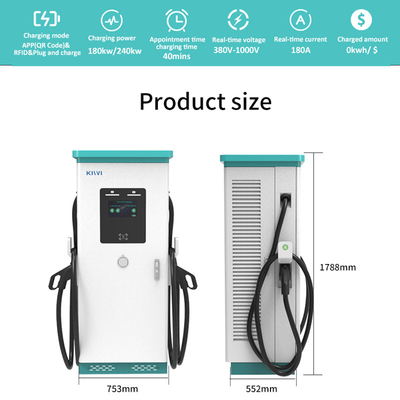

Size
|
772*763*1966mm
|
|
|
|
|||
|
Weight
|
>258kg
|
|
|
|
|||
|
Input Current
|
AC 0A~280A, 90mm cable
|
|
AC 0A~364A, 90mm cable
|
|
|||
|
Leakage Protection
|
RCD AC 30mA
|
|
|
|
|||
|
Plug Wire Length
|
5M(Customizable)
|
|
|
|
|||
|
Plug Standard
|
European standard CCS2
|
|
|
|
|||
|
Cooling Method
|
Wind Cooling (Customizable for liquid cooling)
|
|
|
|
|||
|
Protection Level
|
IP54
|
|
|
|
|||
|
Operation Temperature
|
-20℃- 55℃
|
|
|
|
|||
|
Relative Humidity
|
5%-95%
|
|
|
|
|||
|
lnstallation
Method
|
Floor, column (optional)
|
|
|
|
|||
|
Altitude Limitation
|
≤2000m
|
|
|
|
|||
|
Operation Life
|
≥10000
|
|
|
|
|||
|
