CHAdeMO EV Charger Test System For CCS1 CCS2 GB/T Charging Station

Description

Name:	CCS Combined Charging System DC Test Simulator	Orotocol:	ISO15118, DIN70121 Protocol Verification
Screen:	7 Inch Touch Display	Voltage:	1000V Withstand Voltage Design
Feature:	Portable And Convenient	OEM:	Accpet
MOQ:	1 PC	Size:	OEM Standard Size
Packing:	Standard Packing	Function:	Energy Vehicle Charging Protection
Port:	Shenzhen,Foshan,etc.
Highlight:	EV Charger Test System CCS2 , EV Charger Test CCS2 , CHAdeMO EV Charger Test

OEM Standard Size EV Charger Test System for CCS1 CCS2 CHAdeMO GB/T Charging Station

Shenzhen Kiwi Technology Co., Ltd.

As a solution provider, we can help you calculate the cost of use and match the best product solution with the local policy.

Products Description

Feature

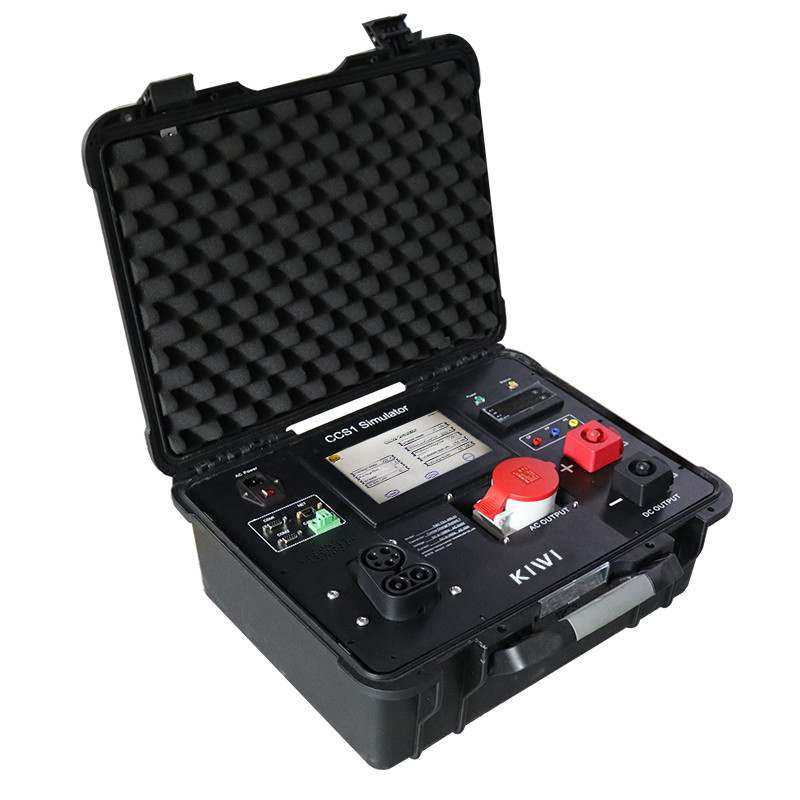

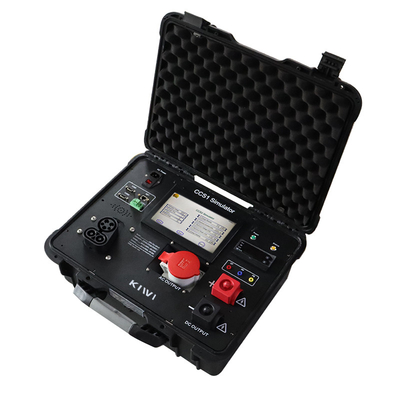

① CCS combined charging system DC test simulator ; ② IS015118, DI N 70121 protocol verification ; ③ 7-inch touch display ; ④ Make each stage of simulation chargin especially pre-charging conditions, timing verification ; ⑤ Make the electricity meter (voltage, current) accurate sampling and intuitive comparison ; ⑥ Connect 200A power line and plastic case circuit breaker to 200A test load ; ⑦ 1000V withstand pressure design ; ⑧ Portable and convenient

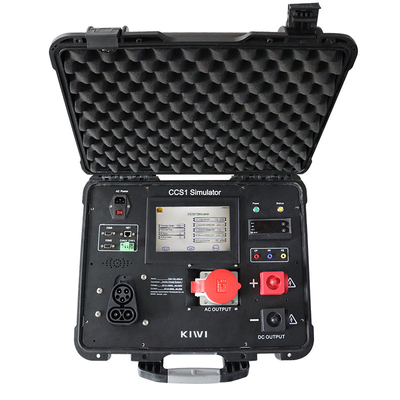

No.	Description	No.	Description

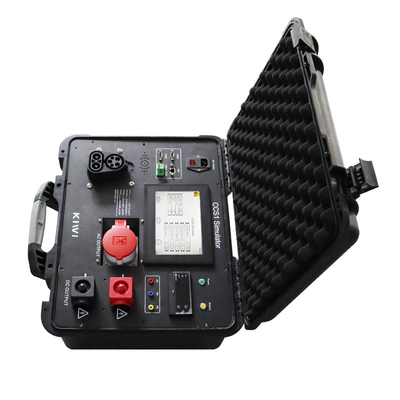

1	Product name	10	Data plate
2	AC power sockets	11	Brand
3	Power switch	12	Output negative wiring holder
4	COM 1 port	13	Output positive terminal holder
5	Ethernet	14	CP / PP / PE terminal junction port
6	COM 2 port	15	High precision meter
7	Air vent	16	Status indicator light
8	CCS 2 AC type 2 interface	17	Power light
9	CCS 2 DC interface	18	more

Detailed Description

The specification and model introduction
Specification			Model
CCS1 Simulator			TMX-TS 1-200
CCS2 Simulator			TMX-TS 2-200

For example, the CCS 2 standard test specifications are shown in the figure below
Model			TMX-TS 2-200
Connector			Combo Charge System 2
Voltage			0 ~ 1000V
Current			0 ~ 200A
>American CCS 1 DC charging test emulator, for American DC charging pile test
> European CCS 2 DC charging test emulator, for European DC charging pile test
> 200A input and output main line (300A capacity design)
> The 1,000 V test and inspection electricity meter

Item	Description
Start	With automatic start, the button does not operate
Stop	Stop the simulation test
EV Parameter Setting	EV-related settings
Protocol Type	Protocol type
Soc	EV is the Current SOC
Demand Voltage	EV demand voltage
Demand Current	EV demand current
CP Status	CP voltage
CP Frequency	CP frequency
CP Duty Cycle	CP duty cycle
PLC Aag_Value	Mean signal mass decay value of the PLC
Chager Power Limit	Max charger power
Message Voltage	Message voltage
Message Current	Message current
Charging Time	Charging interval
Remarning Time	Remaining charging time
Charge Authorization Mode	Authorization method
Vehicle Connector Temperature	Connector temperature

Item			Description
Precharge Voltage			Pre-charging pressure
Precharge Voltage			Pre-charging pressure
Precharge Time			Pre-charge time
EV Status			EV current state
EV Error Code			EV error code
EV Energy Request			EV electric energy
EV Maximum Current Limit			EV maximum current
EV Maximum Voltage Limit			EV peak voltage
EV Maximum Power Limit			EV maximum power
EV Energy Capacity			EV battery capacity
Reset			Factory data reset
Save			Save the settings button
Return			Return to the home page button

Operation method

> Power on the CCS simulator > Familiarize with the various parameters of the simulator,set the match parameters with the charger, and save the settings. > Plug in the CCS Plug head > The CCS simulator automatically detects the CP status and initiates the SLAC >Charging pile test and start the charging, and start the SLAC matching process > The LCD display the communication interaction parameters and the corresponding states. The LED yellow indicator light indicates the current charging communication establishment state, slow flashing indicates the start of communication, fast flashing indicates pre-charging, and constant light indicates cyclic charging. > Click on the STOP to stop the analog charging test

Load interface

> Red positive + > Black connection anode- > Load can be R load, battery, RCD load, etc > Load wiring method: unscrew the top red nut and remove the > protective cover.Show the wire bronze medal, twist > Load the cable can b ed.Install th ae cover back A receiving lt.

Test content

> Complete simulation of the IS015118 / DI N 70121 protocol > Similate and verify the complete charging process > Check the pre-charging Precharge, and check the pre- charging pressure and timing inspection > Provide 200A and 1000V band-load access test > Ultra-long communication is stable and reliable test, pressure test,and success rate test > Charging status indicates the LED, and the LCD displays each charging stage and the corresponding charging sequence > Air-cooled fan is hot > Output performance of 300A and 1000V range
