30kw DC-DC Power EV Charger Module For Fast EV Charging In -30C-70C

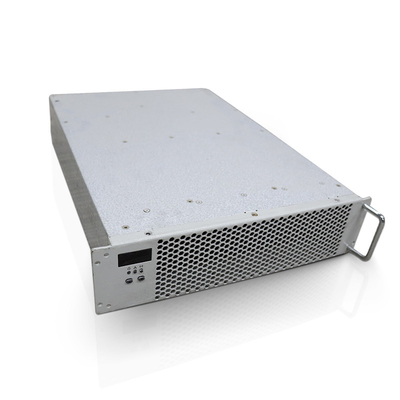

Large Image : 30kw DC-DC Power EV Charger Module For Fast EV Charging In -30C-70C

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	KIWI
Model Number:	DC Power Module

Payment & Shipping Terms:

Price:	$1,360.00/pieces 1-99 pieces
Packaging Details:	Carton/Custom

Contact Now

30kw DC-DC Power EV Charger Module For Fast EV Charging In -30C-70C

Description

Startup Time:	3s-8s	Efficiency:	≥96%
Input Frequency:	45Hz-65Hz	Cooling:	Fan Cooling
THD:	≤5%	Operating Temperature:	-30℃-70℃
Acoustic Noise:	<60dB	Pressure/Altitude:	79kPa-106kPa/2000m
MTBF:	>500000h(40℃)
Highlight:	30kw EV Charger Module 70C , EV Charger Module -30C , ev charger power module

30kw DC-DC EV Charger Module for Fast EV Charging in -30C-70C Temperature Range

Shenzhen Kiwi Technology Co., Ltd.

As a solution provider, we can help you calculate the cost of use and match the best product solution with the local policy.

Products Description

- Ultra high efficiency: the highest efficiency> 96%, rated efficiency> 95%

- Ultra high power density: power density up to 45W/in

- Ultra wide output voltage range: 150VDC * 1000VDC

- Ultra small output ripple voltage: peak-to-peak ripple < 2V

- Ultra small standby power consumption: standby power < 11W

- Complete protection and alarm functions: input over/under voltage, output over voltage, over current, Over temperature protection, output under voltage alarm, output short circuit protection

- LED can display output voltage, output current, group address, protocol,

module address, manual or automatic, fault information

- Support CAN, 485 bus communication, power modules can be grouped by controller

- Adopt DSP digital control and support voltage and current adjustment function

- Battery current reverse protection circuit inside, support hot swap

- Automatically identify and verify new addresses without manually setting

- Discharge circuit inside

Product Paramenters

Model Number	UXC100040-SW
Type	DC/DC Converters, DC/AC Inverters
Output Current	0-100A
Output Frequency	50/60hz
Size	*30084437.5mm*
Weight	15
Certificate	CE
Startup Time	3s-8s
Efficiency	≥96%
Input Frequency	45Hz-65Hz
Communication	CAN&485
Cooling	Fan Cooling
THD	≤5%
Operating Temperature	-30℃-70℃
Acoustic Noise	<60dB
Pressure/Altitude	79kPa-106kPa/2000m
MTBF	>500000h(40℃)
