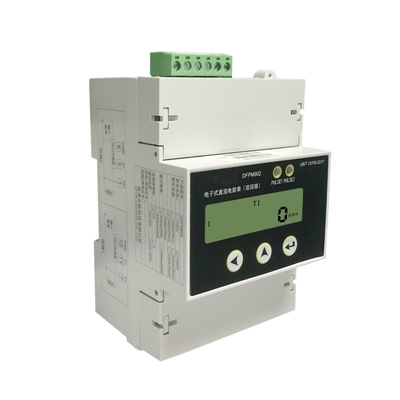

Energy Power Meter Small Smart RS485 Modbus Data Logger Charging Pile 50imp/KWh

Large Image : Energy Power Meter Small Smart RS485 Modbus Data Logger Charging Pile 50imp/KWh

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	KIWI
Model Number:	Electronic DC Energy Meter

Payment & Shipping Terms:

Price:	$69.00/pieces 1-99 pieces
Packaging Details:	Carton/wooden box
Supply Ability:	10000 Piece/Pieces per Month

Contact Now

Energy Power Meter Small Smart RS485 Modbus Data Logger Charging Pile 50imp/KWh

Description

Product Name:	Electronic DC Energy Meter	Reference Voltage:	400V,700V Or 1000V
Reference Current:	100A/75mV,200A/75mV,300A/75mV,400A/75mV,500A/75mV	Pulse Constant:	50imp/kWh , 100imp/kWh ,200imp/kWh
Accuracy:	0.5 Level	Auxiliary Power:	DC 24V Or AC 220V
Display Method:	LCD Display, HTN Material	Operating Temperature:	-25℃~+60℃
Electrostatic Immunity Test:	IEC61000-4-2, Level 4	Conducted RFI Test:	EN55022, Class B
Port:	Shenzhen,Foshan,etc.
Highlight:	RS485 Modbus Data Logger , Modbus Data Logger 50imp/kWh , smart logger modbus

DFPM 902 Energy Power Meter Small Smart RS485 Modbus Data Logger for Charging Pile

Specification

Model Number	Electronic DC Energy Meter
Reference voltage	400V,700V or 1000V
Reference current	100A/75mV,200A/75mV,300A/75mV,400A/75mV,500A/75mV
Pulse constant	50imp/kWh , 100imp/kWh ,200imp/kWh
Accuracy	0.5 level
Auxiliary power	DC 24V or AC 220V
Display method	LCD display, HTN material
Operating temperature	-25℃~+60℃
Electrostatic immunity test	IEC61000-4-2, Level 4
Conducted RFI test	EN55022, Class B

Product Description

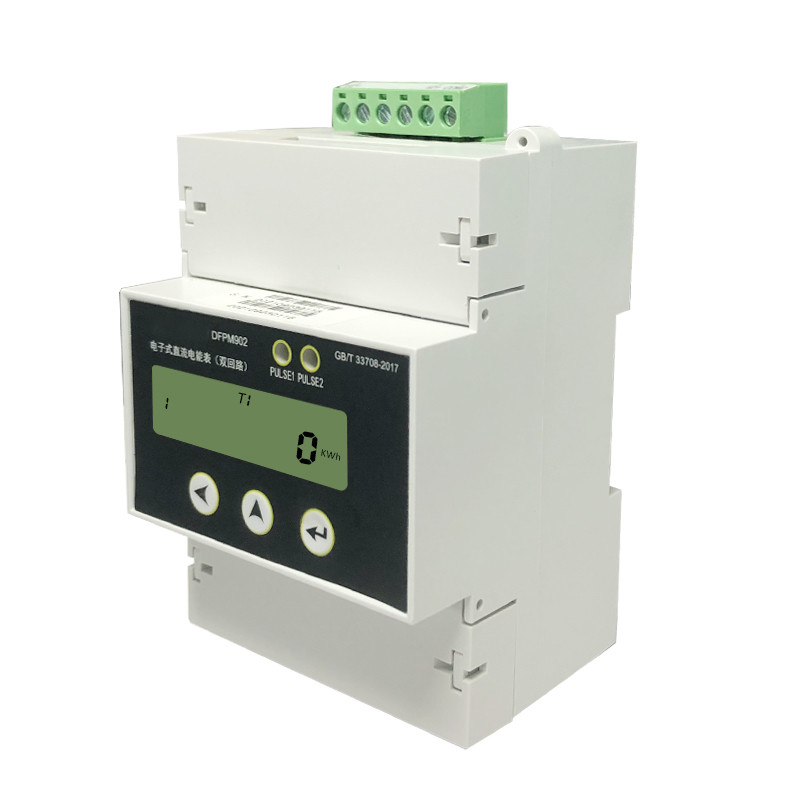

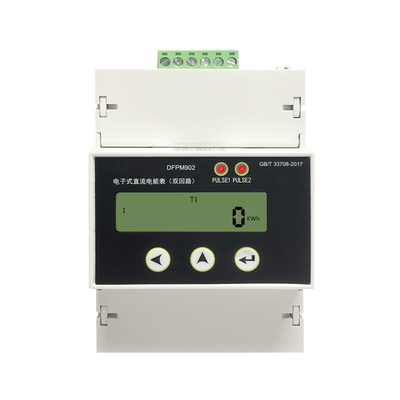

A: Displays the data type prompt B: Programming mode prompt. When the two left buttons on the panel are pressed at the same time, the meter is in the programming state. Press the two buttons again to cancel the programming state, and the prompt disappears synchronously. C: Return rate prompt D: Communication prompt E: Device fault prompt F: A Represents circuit 1 power reverse and B represents loop 2 power reverse. G: Display the data units

Main terminal: The lower main terminal subnumber corresponds to the first loop measuring line wiring: 7,11,12- -V1+, I1+, COM1. The upper main terminal subnumber corresponds to the second circuit measurement line wiring: 1,5,6- -V2 +,I2+,COM2.

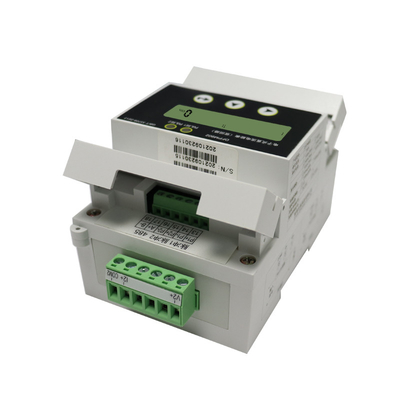

Auxiliary terminals: The upper auxiliary terminal number corresponds to 13,14-Pulse 1: P 1+, P 1-;, 15,16-Pulse 2: P 2 +, P 2-;, 17,18-485: A +, B-. The lower auxiliary terminal number corresponds to 19,20-second pulse: S +, S-; 23,24-AC 220V: L, N (or DC24V: +, -).
