Product Details:
|
| Installation Method: | Wall Mounted,Floor Stand | Start-up And Billing Method: | RFID,plug And Charge,Scan QRCode |
|---|---|---|---|
| Grid Frequency: | 50Hz±10Hz | IP Protection Level: | IP54 |
| OCPP: | OCPP 1.6J/1.5J | USB: | Upgrade, Download |
| RS485: | Point To Point Communication | Insulation Detection: | DC+ And PE, DC- And PE Impedance |
| Connection Temperature: | Plug Temperature Detection | Leakage Current Detection: | 30mA Leakage Protection Switch |
| Port: | Yantian Port, Shekou,HK,Foshan,etc. | ||
| Highlight: | 160kw EV Charging Pile,150kw EV Charging Pile,Old Version Products |
||

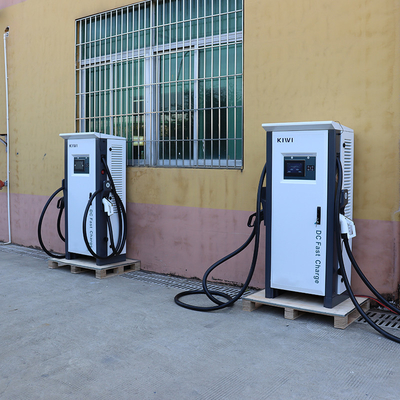

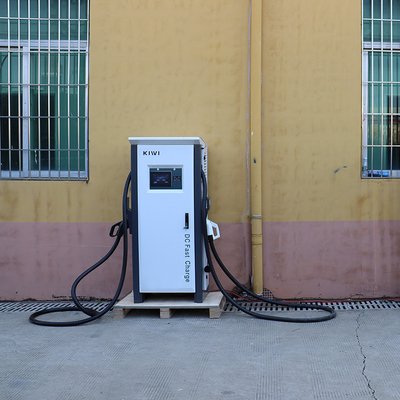

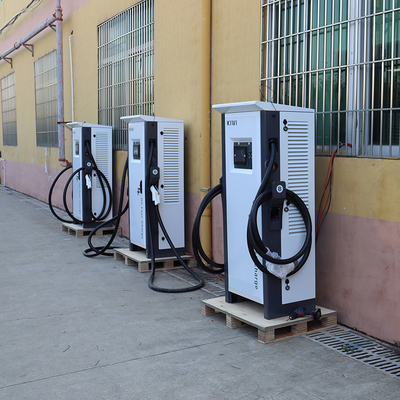

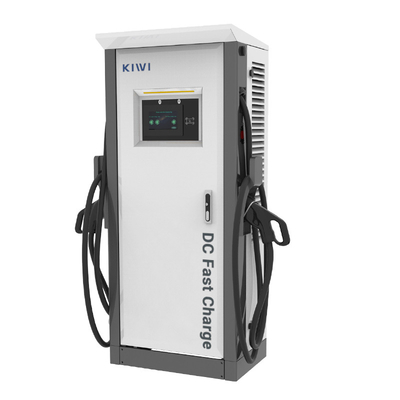

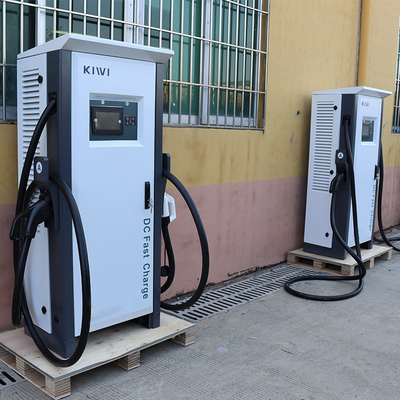

150-160kw Level 3 EV Charging Pile Plug and Charge with Plug Temperature Detection
|
Item
|
Discription
|
|
Rated Power
|
150~160KW
|
|
Charging mode
|
RFID,plug and charge,OCPP(APP/QR Code)
|
|
Size (H * W * D)
|
700*340*1670mm
|
|
Weight
|
250kg
|
|
Plug wire length
|
3.5m(customizable)
|
|
Plug standard
|
CHAdeMO or CCS1 orCCS2 orGB/T
|
|
Protection level
|
IP54
|
|
Cooling Method
|
Wind cooling
|
|
Standard :LAN
Optional :WIFI,4G
|
server communication, APP communication
|
|
OCPP
|
OCPP 1.6J/1.5J
|
|
Input
|
|
|
|
Input Voltage
|
Three-phase AC380V 50/60Hz(L1+L2+L3+N+PE)
|
|
|
Input Current
|
Each phase 0~200A
|
|
|
Leakage Protection
|
Type B RCD 30mA + 6mA
|
|
|
Operating temperature
|
-20℃~60℃
|
|
|
Output
|
|
|
|
Output voltage
|
DC 200V~1000V
|
|
|
Output current
|
150~160KW DC 0 ~100A
|
|
|
Human-computer interaction
|
|
|
|
LED indicator
|
Power supply, charging green, fault red
|
|
|
LCD
|
7 Inch HD high-brightness industrial resistance display
|
|
