Product Details:
|
| Type: | Wallbox EV Charger | Model: | MODEL 3 (5YJ3) |
|---|---|---|---|
| Year: | 2020- | Function: | 7KW AC Charger |
| Car Fitment: | Tesla | Charging Port: | No |
| Connection: | Type 1/Type 2/GB/T | Voltage: | 220V--380V |
| Warranty: | 1 Year | Design Style: | Modern |
| Installation Method: | Floor-standing/Wall-mounted | Start-up And Billing Method: | APP(QRCode),Plug &Charge,RFID |
| Grid Frequency: | 50Hz±10Hz | IP Protection Level: | IP54-IP67 |
| OCPP: | OCPP 1.6J/1.5J | USB: | Upgrade, Download |
| RS485: | Point To Point Communication | Insulation Detection: | AC+ And PE, AC- And PE Impedance |
| Connection Temperature: | Plug Temperature Detection | AC Leakage: | RCD |
| Port: | Shenzhen,Foshan,etc | ||
| Highlight: | Level 2 EV Charger,Level 3 EV Charger 22KW,Tesla ev charger 380V |
||

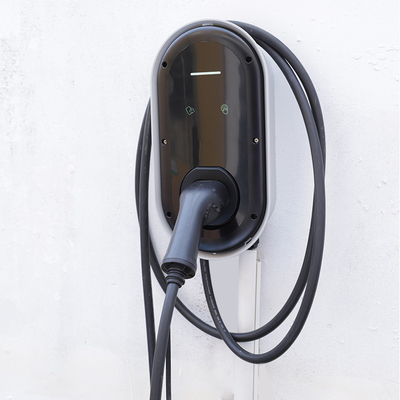

Level 2/3 EV Charger Station for Tesla Car Fitment 220V/380V Wallbox 7KW/11KW/22KW
|
Item
|
Specification
|
|
|
Installation Method
|
Wall-mounted, column (optional)
|
|
|
Rated Power
|
7KW,11KW,22KW
|
|
|
Charging mode
|
APP(QRCode),Plug &Charge,RFID
|
|
|
Size (H * W * D)
|
388*202*104mm
|
|
|
Weight
|
6kg(Without column)
|
|
|
Input
|
|
|
|
Input voltage
|
Single-phase AC220V 50Hz
|
|
|
Input Current
|
Each phase 0~32A
|
|
|
Leakage Protection
|
Type B RCD 30mA + 6mA
|
|
|
Output
|
|
|
|
Output voltage
|
AC 220V±20%
|
|
|
Output current
|
Each phase 0-32A
|
|
|
Connection method
|
|
|
|
Number of plug
|
1
|
|
|
Charging connection method
|
1,Connection method C (plug version)
2,Connection method B (socket version)
|
|
|
Plug wire length
|
5m(customizable)
|
|
|
Plug standard
|
Type-1/Type-2/GB/T
|
|
|
Human-computer interaction
|
|
|
|
LED
|
LED Status light
|
|
|
Other
|
|
|
|
Protection level
|
IP65
|
|
|
Operating temperature
|
-20℃~60℃
|
|
|
Relative humidity
|
5%~95%,No condensation
|
|
|
Lifespan
|
≥10000 times
|
|
