Product Details:
|
| Interface Standard: | CHAdeMO Or CCS1 OrCCS2 OrGB/T | Output Current: | DC |
|---|---|---|---|
| Output Power: | 120KW | Input Voltage: | 1000V |
| Installation Method: | Floor-standing | Start-up And Billing Method: | RFID,plug And Charge,Scan QRCode |
| Input Voltage: | Three Phase AC 380V±20%(ABC+N+PE) | Input Current Range: | AC 0A~182A |
| Grid Frequency: | 50Hz±10Hz | Output Current: | 120KW DC 0 ~400A |
| Output Voltage: | DC 150V~1000V | IP Protection Level: | IP54 |
| OCPP: | OCPP 1.6J/1.5J | AC Leakage: | RCD B |
| Port: | Shenzhen,Foshan,HK,etc. | ||
| Highlight: | Three Phase EV Charger,Tesla EV Charger,VW EV Charger |
||

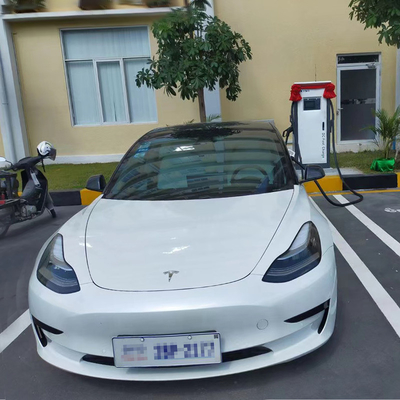

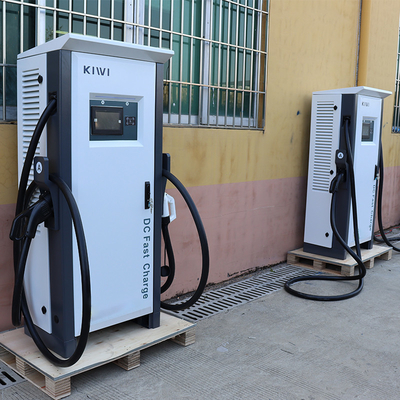

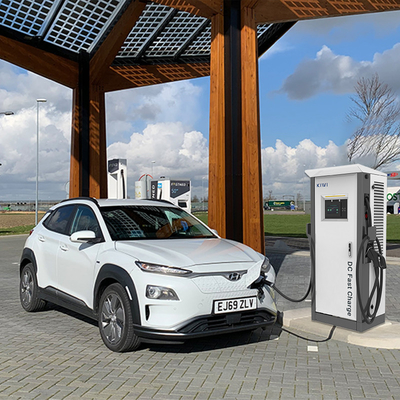

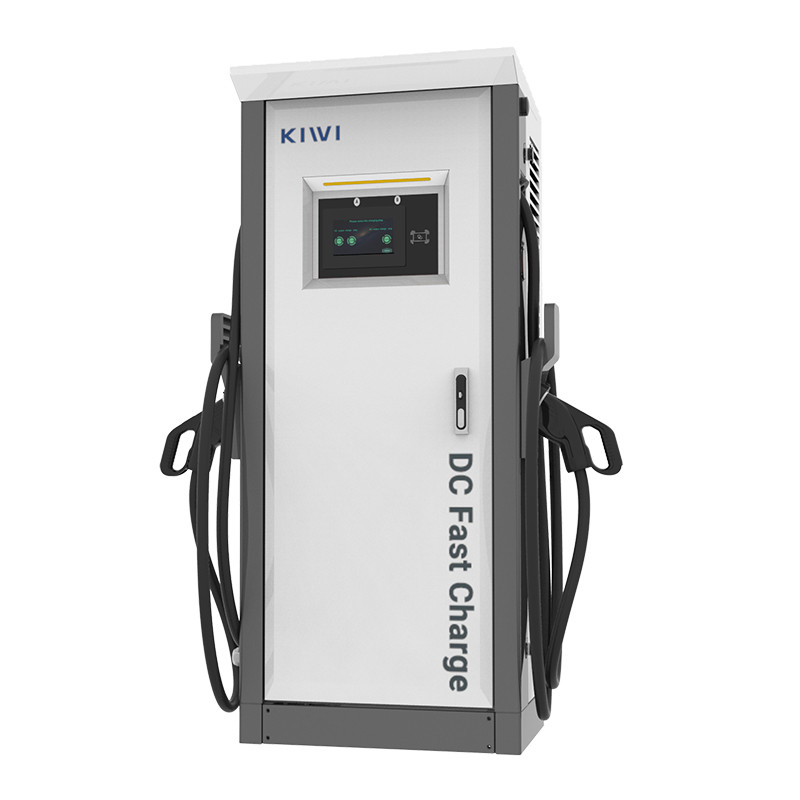

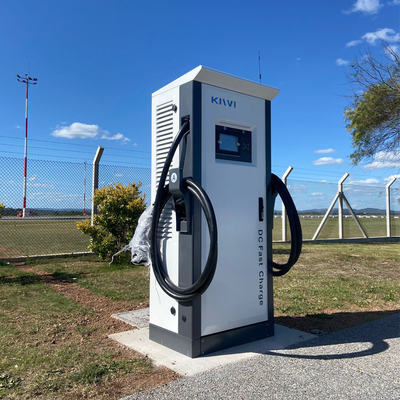

Three Phase AC 380V±20% Input Voltage Outdoor Charging Pile for Tesla VW EV Charger
|
Item
|
Value
|
|
Rated Power
|
60KW/120KW/150KW
|
|
Charging mode
|
RFID,plug and charge,APP(OCPP)
|
|
Size (H * W * D)
|
700*340*1670mm
|
|
Weight
|
258kg
|
|
Plug wire length
|
3.5m(customizable)
|
|
Plug standard
|
CHAdeMO or CCS1 orCCS2 orGB/T
|
|
Protection level
|
IP54
|
|
Cooling Method
|
Wind cooling
|
|
Standard :LAN
Optional :WIFI,4G
|
server communication, APP communication
|
|
OCPP
|
OCPP 1.6J/1.5J
|
|
Input
|
|
|
|
Input Voltage
|
Three-phase AC380V 50/60Hz(L1+L2+L3+N+PE)
|
|
|
Input Current
|
Each phase 0~92A
|
|
|
Leakage Protection
|
Type B RCD 30mA + 6mA
|
|
|
Operating temperature
|
-20℃~60℃
|
|
|
Output
|
|
|
|
Output voltage
|
DC 150V~1000V
|
|
|
Output current
|
60KW DC 0 ~100A
|
|
|
Human-computer interaction
|
|
|
|
LED indicator
|
Power supply, charging green, fault red
|
|
|
LCD
|
7 Inch HD high-brightness industrial resistance display
|
|
