Product Details:
|
| Interface Standard: | CCS | Output Current: | AC |
|---|---|---|---|
| Output Power: | 22kW | Input Voltage: | 380v |
| Installation Method: | Wall-mounted/Column(optional) | Grid Frequency: | 50Hz±10Hz |
| IP Protection Level: | IP65 | OCPP: | OCPP 1.6J/1.5J |
| USB: | Upgrade, Download | RS485: | Point To Point Communication |
| Insulation Detection: | AC+ And PE, AC- And PE Impedance | Connection Temperature: | Plug Temperature Detection |
| AC Leakage: | RCD | Port: | Shenzhen,Foshan,etc |
| Highlight: | Home Electric Vehicle Charger,Electric Vehicle Charger 22kw,electric vehicle 22kw charger |
||

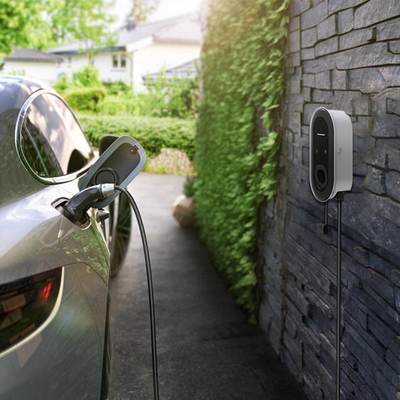

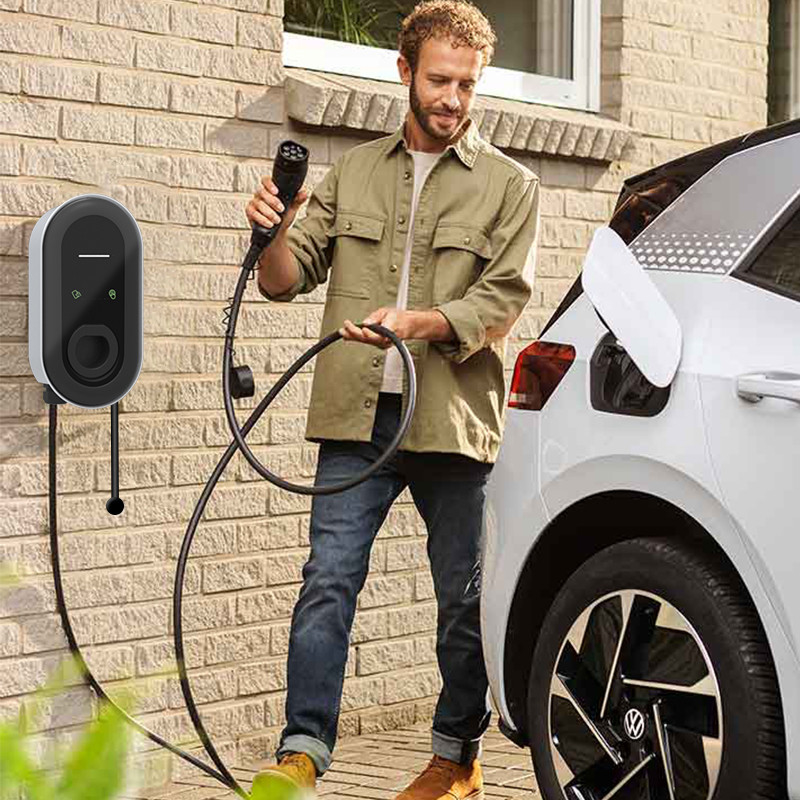

Home Electric Vehicle Charger with 22kw AC Charging and Plug Temperature Detection
|
Item
|
Specification
|
|
|
Installation Method
|
Wall-mounted, column (optional)
|
|
|
Rated Power
|
7KW,11KW,22KW
|
|
|
Charging mode
|

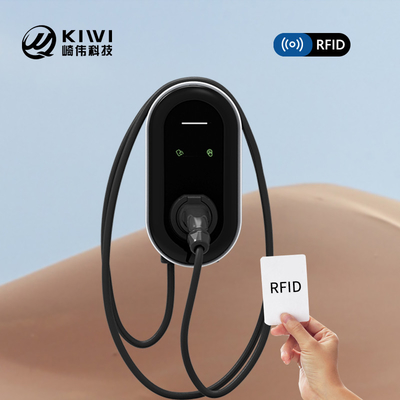

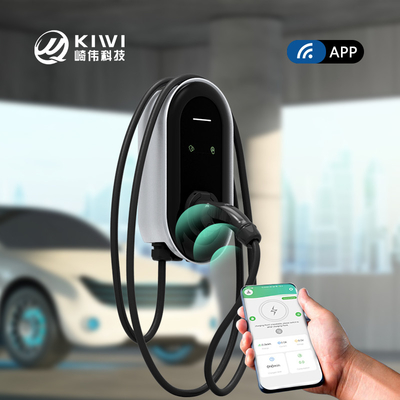

APP(QRCode),Plug &Charge,RFID
|
|
|
Size (H * W * D)
|
388*202*104mm
|
|
|
Weight
|
6kg(Without column)
|
|
|
Input
|
|
|
|
Input voltage
|
Single-phase AC220V 50Hz
|
|
|
Input Current
|
Each phase 0~32A
|
|
|
Leakage Protection
|
Type B RCD 30mA + 6mA
|
|
|
Output
|
|
|
|
Output voltage
|
AC 220V±20%
|
|
|
Output current
|
Each phase 0-32A
|
|
|
Connection method
|
|
|
|
Number of plug
|
1
|
|
|
Charging connection method
|
1,Connection method C (plug version)
2,Connection method B (socket version)
|
|
|
Plug wire length
|
5m(customizable)
|
|
|
Plug standard
|
Type-1/Type-2/GB/T
|
|
|
Human-computer interaction
|
|
|
|
LED
|
LED Status light
|
|
|
Other
|
|
|
|
Protection level
|
IP65
|
|
|
Operating temperature
|
-20℃~60℃
|
|
|
Relative humidity
|
5%~95%,No condensation
|
|
|
Lifespan
|
≥10000 times
|
|
