Product Details:
|
| Type: | DC Fast Charger | Year: | 2013-2013 |
|---|---|---|---|
| Model: | S | Function: | DC Wallbox Charger |
| Car Fitment: | Tesla | Charging Port: | No |
| Connection: | CCS1/CCS2/CHAdeMO/GB/T | Voltage: | 380V |
| Warranty: | 1 Year | Design Style: | Simple |
| Installation Method: | Wall Mounted,Column | Start-up And Billing Method: | RFID,plug And Charge,Scan QRCode |
| Grid Frequency: | 50Hz±10Hz | IP Protection Level: | IP54 |
| OCPP: | OCPP 1.6J/1.5J | USB: | Upgrade, Download |
| RS485: | Point To Point Communication | Insulation Detection: | DC+ And PE, DC- And PE Impedance |
| Connection Temperature: | Plug Temperature Detection | Leakage Current Detection: | 30mA Leakage Protection Switch |
| Port: | Yantian Port, Shekou,HK,Foshan,etc. | ||
| Highlight: | DC Wallbox Charger 30kW 50Hz,DC Wallbox Charger 40kW,40A Fast EV Charger 600V |
||

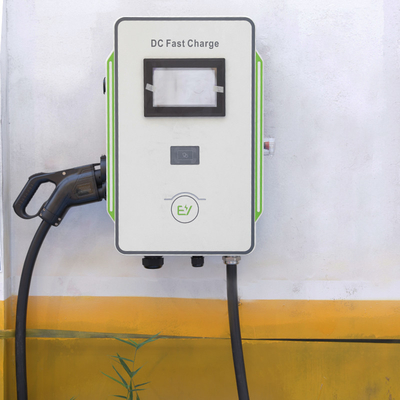

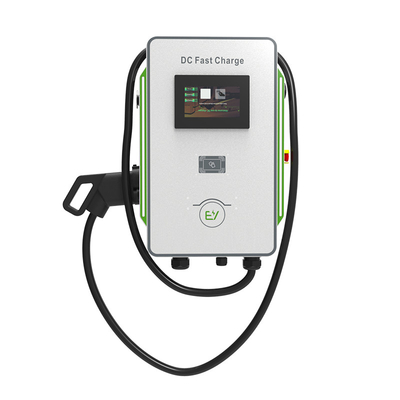

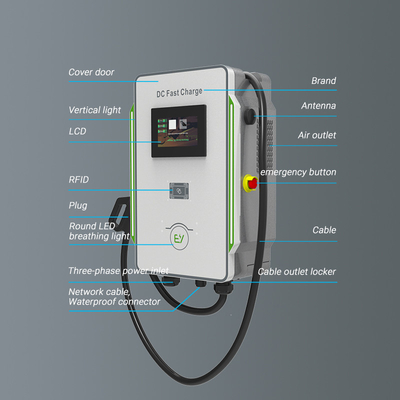

DC Wallbox Charger 30kW 40kW Cars CCS 40A Fast EV Charger 600V Grid Frequency 50Hz±10Hz
|
Item
|
Value
|
|

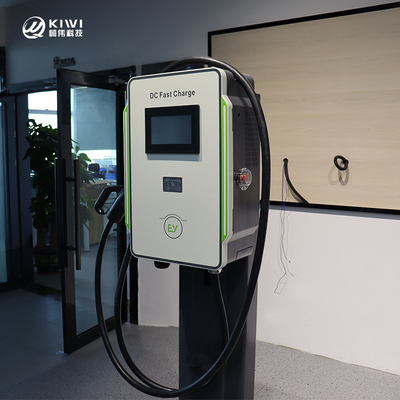

Installation Method
|
wall-mounted/Column(optional)
|
|
Rated Power
|
30KW/40KW
|
|
Start-Up And Billing Method
|
RFID,plug and charge,CMS(Scan QR Code)
|
|
Input Voltage
|
Three phase DC1000V±20%(ABC+N+PE)
|
|
Grid Frequency
|
50Hz±10Hz
|
|
Input Current Range
|
AC 0A~45A
|
|
Power-On Input Impulse Current
|
≤ Maximum input current 120%
|
|
Input Protection
|
Overvoltage, dustproof and waterproof, overload, short circuit protection, lightning protection, energy load output
|
|
Input Break
|
With AC 30mA leakage plastic case
|
|
Output Current
|
30KW/40KW, DC 0~60A
|
|
The Output Voltage
|
DC 200V~1000V
|
|
Effectiveness
|
≥95%
|
|
Working Temperature
|
-30℃～+55℃; -40℃(±4℃) module start-up; derating use above 55℃; shutdown above 70℃
|
|
IP Protection Level
|
IP54
|
|
Cooling Method
|
Smart air cooling
|
|
Noise
|
≤60dB
|
