Product Details:
|
| Interface Standard: | Type 1/Type 2/GB/T | Output Current: | AC |
|---|---|---|---|
| Output Power: | 7kW | Input Voltage: | 380v |
| Installation Method: | Wall-mounted, Column (optional) | Start-up And Billing Method: | Plug&Charge/RFID/ APP |
| Input Voltage: | Three-phase AC380V 50/60Hz(L1+L2+L3+N+PE) | Input Current: | 0~32A |
| IP Protection Level: | IP65 | OCPP: | OCPP 1.6J (optional) |
| Output Voltage: | 380Vac +/-10%, Three -phase | Output Current: | 0-32A |
| Plug Wire Length: | 5m (customizable) | AC Leakage: | Type B RCD AC 30mA +DC 6mA |
| Port: | Shenzhen,Foshan,etc. | ||
| Highlight: | 22kW Type 2 EV Charger,32A Type 2 EV Charger,22kW EV Charger |
||

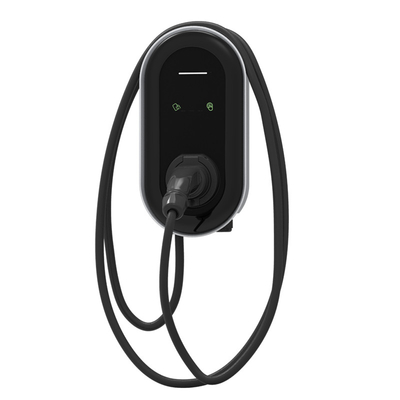

22kW Output Power 32A Output Current Energy Electric Type 2 EV Charger for Commercial
|
New Energy Electric Type 2 EV Charger 32A EV Charging 22kw Commercial Household Fast Station 7KW EV Charger pile
|
|
|
|
Item
|
Specification
|
|
|
Installation Method
|
Wall-mounted, column (optional)
|
|
|
Rated Power
|
7KW,11KW,22KW
|
|
|
Charging mode
|
APP(QRCode),Plug &Charge,RFID
|
|
|
Size (H * W * D)
|
388*202*104mm
|
|
|
Weight
|
6kg(Without column)
|
|
|
Input
|
|
|
|
Input voltage
|
Single-phase AC220V 50Hz
|
|
|
Input Current
|
Each phase 0~32A
|
|
|
Leakage Protection
|
Type B RCD 30mA + 6mA
|
|
|
Output
|
|
|
|
Output voltage
|
AC 220V±20%
|
|
|
Output current
|
Each phase 0-32A
|
|
|
Connection method
|
|
|
|
Number of plug
|
1
|
|
|
Charging connection method
|
1,Connection method C (plug version)
2,Connection method B (socket version)
|
|
|
Plug wire length
|
5m(customizable)
|
|
|
Plug standard
|
Type-1/Type-2/GB/T
|
|
|
Human-computer interaction
|
|
|
|
LED
|
LED Status light
|
|
|
Special Protection
|
|
|
|
Over current protection, Residual current protection, Ground protection, Surge protection, Over/Under voltage protection,
Over/Under temperature protection
|
|
|
|
Other
|
|
|
|
Protection level
|
IP65
|
|
|
Operating temperature
|
-20℃~60℃
|
|
|
Relative humidity
|
5%~95%,No condensation
|
|
|
Lifespan
|
≥10000 times
|
|
