Product Details:
|
| Type: | Portable DC EV Charger | Year: | 2017-2019 |
|---|---|---|---|
| Model: | Model X | Function: | 7KW DC Charger |
| Car Fitment: | Tesla | Charging Port: | No |
| Connection: | CCS1/CCS2/GB/T | Voltage: | 220V |
| Warranty: | 1 Year | Design Style: | Modern |
| Installation Method: | Portable | Charging Mode: | Automatic Charging After Starting The Button |
| Input Voltage: | Single-phase AC 220V/50Hz(L+N+PE) AC100V~AC220V | Input Current Range: | AC 0A~32A |
| IP Protection Level: | IP54 | Output: | DC 150V~750V,20A |
| RS485: | Point To Point Communication | Power Unit: | 7KW Power Output |
| Cooling Fan: | Ensure Long-time Work And Heat Dissipation | Leakage Switch: | 30mA AC Current Protection Switch |
| Port: | Shenzhen,Foshan,etc. | ||
| Highlight: | 7KW Car Charging Equipment,Car Charging Equipment 32A32A,electric car charging equipment |
||

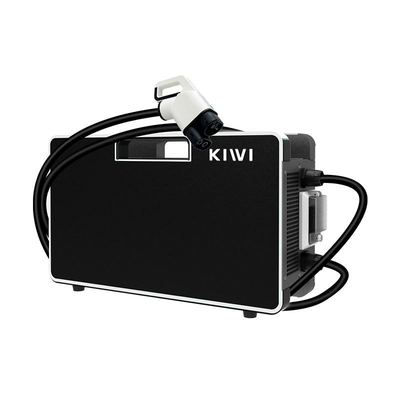

7KW E Smart Car Charging Equipment Input Current Range AC 0A-32A for Electric Cars
|
Item
|
Value
|
|
Installation Method
|
Portable
|
|
Rated Power
|
7KW DC
|
|
Charging mode
|
Automatic charging after starting the button
|
|
Size (H * W * D)
|
482*293*152mm
|
|
Weight
|
15kg
|
|
Input voltage
|
single-phase AC 220V/50Hz
AC100V~AC220V |
|
Input Current
|
Each phase 0~32A
|
|
Leakage Protection
|
30mA AC current protection switch
|
|
Output voltage
|
DC 150V~750V
|
|
Output current
|
DC 20A
|
|
Plug wire length
|
5m(customizable)
|
|
Plug standard
|
CCS1/CCS2/GB/T
|
|
LCD
|
4.3 inch color touch LCD
|
|
Protection level
|
IP41
|
|
Noise
|
≤55dB
|
|
Operating temperature
|
-20°C～+50°C
|
|
Safety protection
|
Over voltage protection, over current protection, output short circuit protection, reverse connection protection, adhesion
detection, over temperature protection, leakage protection, insulation detection
|
