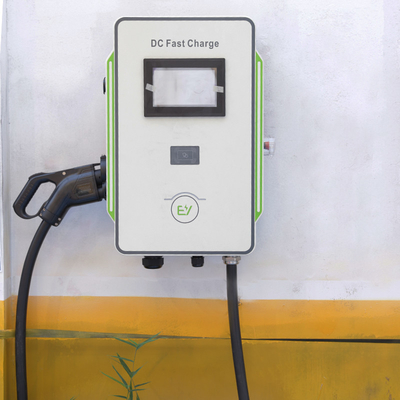

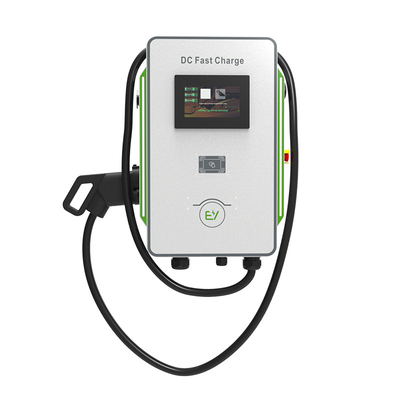

Product Details:
|
| Type: | DC Fast Charger | Year: | 2013-2013 |
|---|---|---|---|
| Model: | S | Function: | Stereo, DC Wallbox Charger |
| Car Fitment: | Tesla | Charging Port: | No |
| Connection: | CCS1/CCS2/CHAdeMO/GB/T | Voltage: | 1000V |
| Warranty: | 1 Year | Design Style: | Simple |
| Installation Method: | Wall Mounted,Column | Start-up And Billing Method: | RFID,plug And Charge,Scan QRCode |
| Grid Frequency: | 50Hz±10Hz | IP Protection Level: | IP54 |
| OCPP: | OCPP 1.6J/1.5J | USB: | Upgrade, Download |
| RS485: | Point To Point Communication | Insulation Detection: | DC+ And PE, DC- And PE Impedance |
| Connection Temperature: | Plug Temperature Detection | Leakage Current Detection: | 30mA Leakage Protection Switch |
| Port: | Yantian Port, Shekou,HK,Foshan,etc. |
Item | Value |

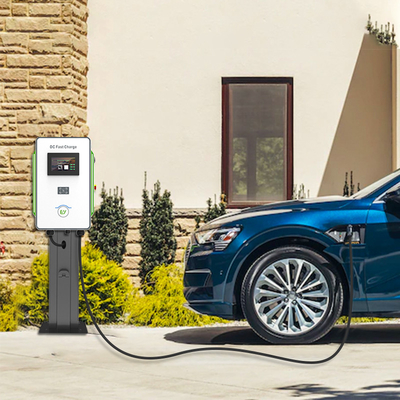

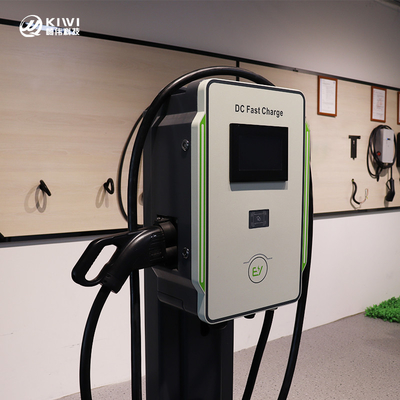

Installation Method | wall-mounted/Column(optional) |
Rated Power | 30KW/40KW |
Start-Up And Billing Method | RFID、plug and charge、CMS（Scan QR Code） |
Input Voltage | Three phase DC1000V±20%（ABC+N+PE） |
Grid Frequency | 50Hz±10Hz |
Input Current Range | AC 0A~45A |
Power-On Input Impulse Current | ≤ Maximum input current 120% |
Input Protection | Overvoltage, dustproof and waterproof, overload, short circuit protection, lightning protection, energy load output |
Input Break | With AC 30mA leakage plastic case |
Output Current | 30KW/40KW, DC 0~60A |
The Output Voltage | DC 200V~1000V |
Effectiveness | ≥95% |
Working Temperature | -30℃～+55℃; -40℃(±4℃) module start-up; derating use above 55℃; shutdown above 70℃ |
IP Protection Level | IP54 |
Cooling Method | Smart air cooling |
Noise | ≤60dB |
