Product Details:
|
| Interface Standard: | Type-1/Type-2/GB/T | Output Current: | AC |
|---|---|---|---|
| Output Power: | 22kW | Input Voltage: | 200 - 220v |
| Installation Method: | Wall Mounted/Column | Start-up And Billing Method: | Plug &Charge,RFID, App |
| Grid Frequency: | 50Hz±10Hz | IP Protection Level: | IP54 |
| OCPP: | OCPP 1.6J/1.5J | USB: | Upgrade, Download |
| RS485: | Point To Point Communication | Insulation Detection: | AC+ And PE, AC- And PE Impedance |
| Connection Temperature: | Plug Temperature Detection | AC Leakage: | RCD |
Item | Specification | |

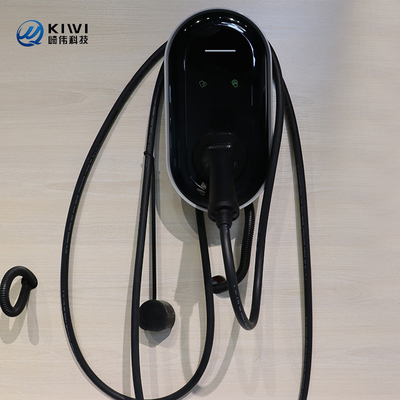

Installation Method | Wall-mounted, column (optional) | |
Rated Power | 7KW、11KW、22KW | |
Charging mode | APP(QRCode)、Plug &Charge、RFID | |
Size (H * W * D) | 388*202*104mm | |
Weight | 6kg(Without column) | |
Input | ||
Input voltage | Single-phase AC220V 50Hz | |
Input Current | Each phase 0~32A | |
Leakage Protection | Type B RCD 30mA + 6mA | |
Output | ||
Output voltage | AC 220V±20% | |
Output current | Each phase 0-32A | |
Connection method | ||
Number of plug | 1 | |
Charging connection method | 1、Connection method C (plug version) 2、Connection method B (socket version) | |

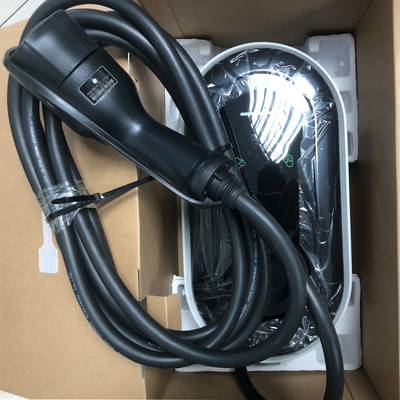

Plug wire length | 5m(customizable) | |
Plug standard | Type-1/Type-2/GB/T | |
Human-computer interaction | ||
LED | LED Status light | |
Other | ||
Protection level | IP65 | |
Operating temperature | -20℃~60℃ | |
Relative humidity | 5%~95%，No condensation | |
Lifespan | ≥10000 times | |
