Product Details:
|
| Interface Standard: | TYPE1-TYPE 2 | Output Current: | AC |
|---|---|---|---|
| Output Power: | 22kW | Input Voltage: | 380v |
| Installation Method: | Wall-mounted/Column(optional) | Grid Frequency: | 50Hz±10Hz |
| IP Protection Level: | IP65 | OCPP: | OCPP 1.6J/1.5J |
| USB: | Upgrade, Download | RS485: | Point To Point Communication |
| Insulation Detection: | AC+ And PE, AC- And PE Impedance | Connection Temperature: | Plug Temperature Detection |
| AC Leakage: | RCD |

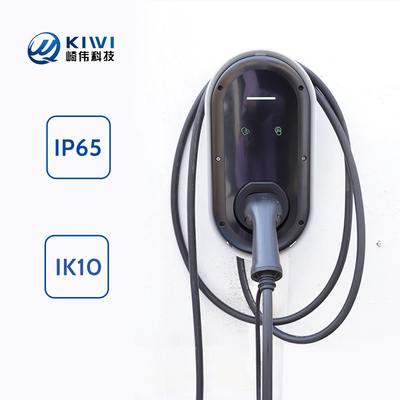

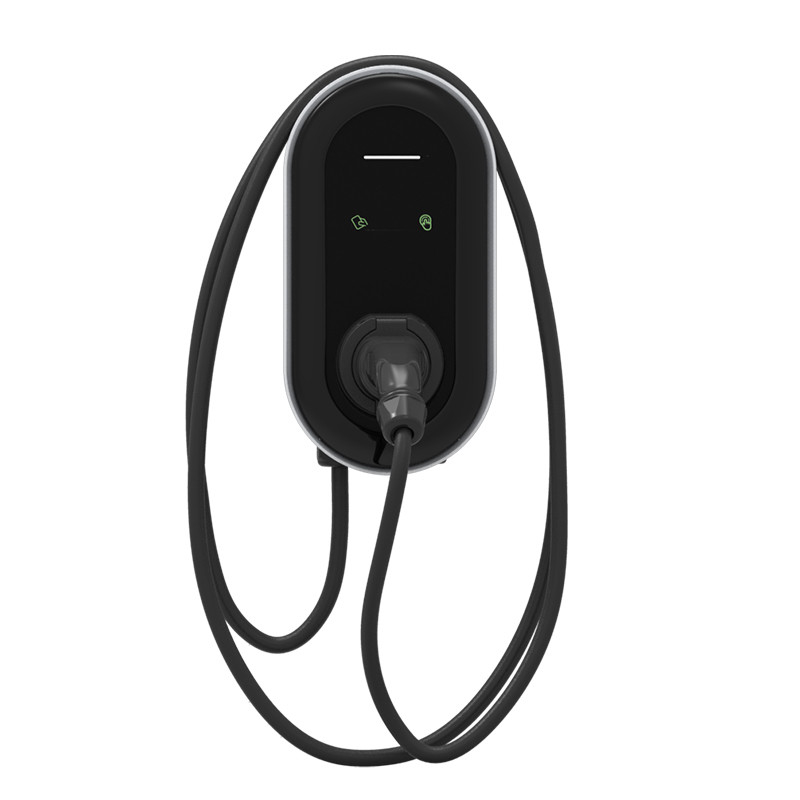

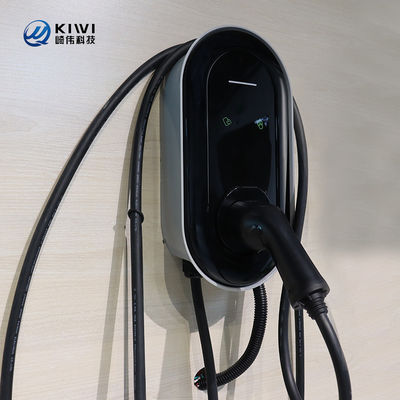

KIWI home 32A EV Charger 22KW Level 2 Charging EVSE EV mount Wallbox Station for electric car | ||
Item | Specification | |
Installation Method | Wall-mounted, column (optional) | |
Rated Power | 7KW、11KW、22KW | |
Charging mode | APP(QRCode)、Plug &Charge、RFID | |
Size (H * W * D) | 388*202*104mm | |
Weight | 6kg(Without column) | |
Input | ||
Input voltage | Single-phase AC220V 50Hz | |
Input Current | Each phase 0~32A | |
Leakage Protection | Type B RCD 30mA + 6mA | |
Output | ||
Output voltage | AC 220V±20% | |
Output current | Each phase 0-32A | |
Connection method | ||
Number of plug | 1 | |
Charging connection method | 1、Connection method C (plug version) 2、Connection method B (socket version) | |
Plug wire length | 5m(customizable) | |
Plug standard | Type-1/Type-2/GB/T | |
Human-computer interaction | ||
LED | LED Status light | |
Electrical protections | ||
Under voltage/Over voltage/Short circuit/Over current/Leakage Protection/Over temperature/Emergency stop/Insulation detection/Surge protection | ||
Other | ||
Protection level | IP65 | |
Operating temperature | -20℃~60℃ | |
Relative humidity | 5%~95%，No condensation | |
Lifespan | ≥10000 times | |
