Product Details:
|
| Interface Standard: | Type 1/Type 2/GB/T | Output Current: | AC |
|---|---|---|---|
| Output Power: | 7kW | Input Voltage: | 380v |
| Installation Method: | Wall-mounted, Column (optional) | Start-up And Billing Method: | Plug&Charge/RFID/ APP |
| Input Voltage: | Three-phase AC380V 50/60Hz(L1+L2+L3+N+PE) | Input Current: | 0~32A |

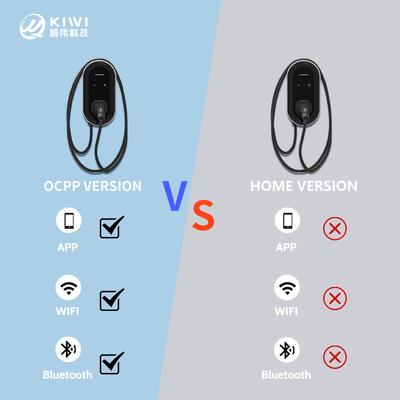

| IP Protection Level: | IP65 | OCPP: | OCPP 1.6J (optional) |
| Output Voltage: | 380Vac +/-10%, Three -phase | Output Current: | 0-32A |
| Plug Wire Length: | 5m (customizable) | AC Leakage: | Type B RCD AC 30mA +DC 6mA |
| Port: | Shenzhen,Foshan,etc. |

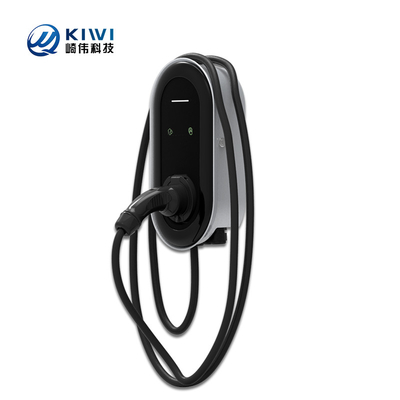

OEM 22kw Wallbox Type 2 Three Phase 32A Electrical Car Charger Station Ac wall mounted Ev Charger | ||
Item | Specification | |

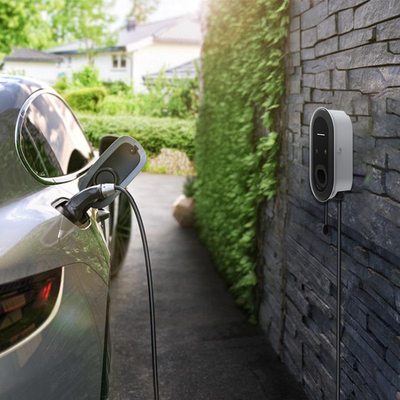

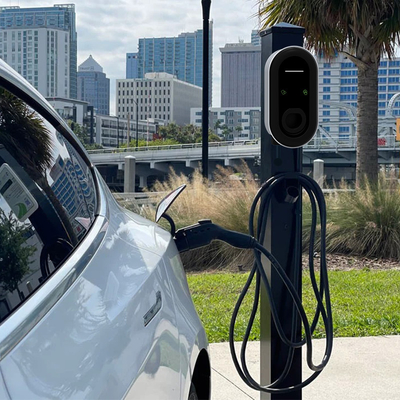

Installation Method | Wall-mounted, column (optional) | |
Rated Power | 7KW、11KW、22KW | |

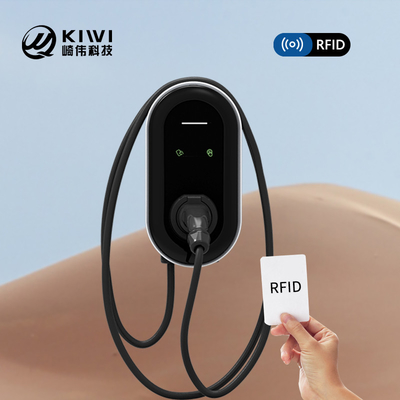

Charging mode | APP(QRCode)、Plug &Charge、RFID | |
Size (H * W * D) | 388*202*104mm | |
Weight | 6kg(Without column) | |
Input | ||
Input voltage | Single-phase AC220V 50Hz | |
Input Current | Each phase 0~32A | |
Leakage Protection | Type B RCD 30mA + 6mA | |
Output | ||
Output voltage | AC 220V±20% | |
Output current | Each phase 0-32A | |
Connection method | ||
Number of plug | 1 | |
Charging connection method | 1、Connection method C (plug version) 2、Connection method B (socket version) | |
Plug wire length | 5m(customizable) | |
Plug standard | Type-1/Type-2/GB/T | |
Human-computer interaction | ||
LED | LED Status light | |
Special Protection | ||
Over current protection, Residual current protection, Ground protection, Surge protection, Over/Under voltage protection, Over/Under temperature protection | ||
Other | ||
Protection level | IP65 | |
Operating temperature | -20℃~60℃ | |
Relative humidity | 5%~95%，No condensation | |
Lifespan | ≥10000 times | |
