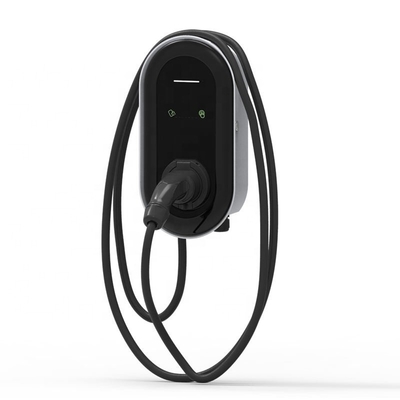

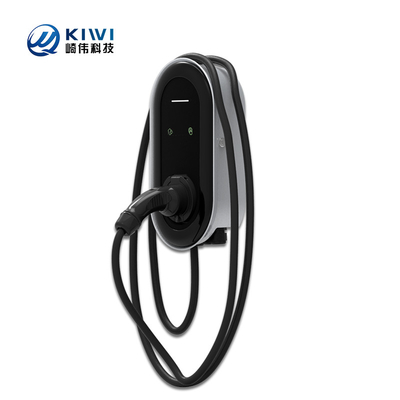

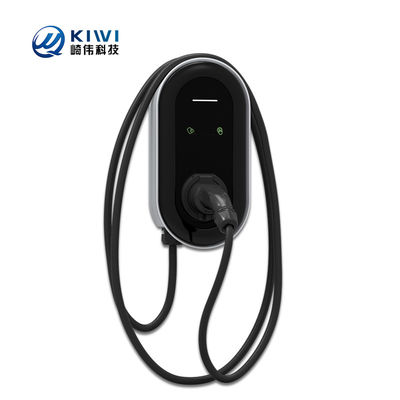

11kw Three Phase Type 2 EV Charging Station with RFID App and AC Leakage Protection

11kw Three Phase Type 2 EV Charging Station with RFID App and AC Leakage Protection
11kw Three Phase Type 2 EV Charging Station with RFID App and AC Leakage Protection 11kw Three Phase Type 2 EV Charging Station with RFID App and AC Leakage Protection 11kw Three Phase Type 2 EV Charging Station with RFID App and AC Leakage Protection 11kw Three Phase Type 2 EV Charging Station with RFID App and AC Leakage Protection 11kw Three Phase Type 2 EV Charging Station with RFID App and AC Leakage Protection 11kw Three Phase Type 2 EV Charging Station with RFID App and AC Leakage Protection

Large Image :  11kw Three Phase Type 2 EV Charging Station with RFID App and AC Leakage Protection

Product Details:
Place of Origin: Guangdong, China
Brand Name: KIWI
Model Number: S2-AC380V-11KW
Payment & Shipping Terms:
Minimum Order Quantity: 10 pieces
Price: $495.00/pieces 10-50 pieces
Packaging Details: Carton/wooden box
Supply Ability: 10000 Piece/Pieces per Month
Contact Now

11kw Three Phase Type 2 EV Charging Station with RFID App and AC Leakage Protection

Description
Interface Standard: Type2 Output Current: AC
Output Power: 11kW Input Voltage: 380v
Rated Power: 11KW Input Voltage: Three-phase AC380V
Start-up And Billing Method: Plug&Charge/RFID/ APP/WIFI/4G Installation Method: Wall-mounted, Column (optional)
Input Current: 0~32A IP Protection Level: IP65
OCPP: OCPP 1.6J Output Voltage: 380Vac +/-10%
Plug Wire Length: 5m (customizable) AC Leakage: Type B RCD AC 30mA +DC 6mA
Port: Shenzhen,Foshan,etc.
Highlight:

11kw three phase EV charger

,

Type 2 EV charging station with RFID

,

EV charger with AC leakage protection

 11kw Three Phase Type 2 EV Charging Station with RFID App and AC Leakage Protection 0



Item
Specification
Installation Method
Wall-mounted, column (optional)
Rated Power
11KW
Charging mode
APP(QRCode),Plug &Charge,RFID
Size (H * W * D)
388*202*104mm
Weight
6kg(Without column)
Input
Input voltage
Three-phase AC380V 50Hz
Input Current
Each phase 0~32A
Leakage Protection
Type B RCD 30mA + 6mA
Output
Output voltage
AC 380V±20%
Output current
Each phase 0-32A
Connection method
Number of plug
1
Charging connection method
1,Connection method C (plug version)
2,Connection method B (socket version)
Plug wire length
5m(customizable)
Plug standard
Type-1/Type-2/GB/T
Human-computer interaction
LED
LED Status light
Other
Protection level
IP65
Operating temperature
-20℃~60℃
Relative humidity
5%~95%,No condensation
Lifespan
≥10000 times



11kw Three Phase Type 2 EV Charging Station with RFID App and AC Leakage Protection 1



11kw Three Phase Type 2 EV Charging Station with RFID App and AC Leakage Protection 2

11kw Three Phase Type 2 EV Charging Station with RFID App and AC Leakage Protection 3



11kw Three Phase Type 2 EV Charging Station with RFID App and AC Leakage Protection 4



11kw Three Phase Type 2 EV Charging Station with RFID App and AC Leakage Protection 5

11kw Three Phase Type 2 EV Charging Station with RFID App and AC Leakage Protection 6

11kw Three Phase Type 2 EV Charging Station with RFID App and AC Leakage Protection 7



11kw Three Phase Type 2 EV Charging Station with RFID App and AC Leakage Protection 8
11kw Three Phase Type 2 EV Charging Station with RFID App and AC Leakage Protection 9
11kw Three Phase Type 2 EV Charging Station with RFID App and AC Leakage Protection 10
11kw Three Phase Type 2 EV Charging Station with RFID App and AC Leakage Protection 11
11kw Three Phase Type 2 EV Charging Station with RFID App and AC Leakage Protection 12
11kw Three Phase Type 2 EV Charging Station with RFID App and AC Leakage Protection 13

Customers Also LIke to Ask These Questions
Customers Also LIke to Ask These Questions
Q: How is your electric vehicle charging station after-sale service?
A:1/We will build a whatsapp/skype/wechat service group with technical engineers and company leader if need;
2/We provide 24/7 online service,so you're welcome to contact us any time you need;
3/Will change the part for free during warranty if non-human damage,for other problems,we'd like to supply customer the part at original cost.

Q: How is your payment method?
A: Same as other ev charging stations suppliers,normally 30%-50% deposit and balance paid off before shipment,special requirement customer please contact us for further discussion.

Q: How long is your normal delivery time?
A: 1/For stock ev charger,can arrange the shipment immediately after you confirm the order;
2/For custom AC ev charger less than 100pcs,normally 7-15 days;
3/For custom DC ev charger less than 100pcs,normally 15-25 days;

Q: Can I use my own card or app at your electric car charging stations?
A: Normally the RFID card and app have to identify our electric charger,so we will provide you 3 free RFID card for each charger.

Q:Will your electric car charger charging slower in winter?
A:The electric charging station may need a little longer warm up time before normal run,but this is very small change,it won't
influence the output power,so we can ignore this influence.

Q:Can you provide a video how to install the electric vehicle charger?
A:Yes we have the installation guide video,it's very easy and anyone who know a little about electricity safety can finish this
work,we will also be ready online to help your any possible question.

Q:How can I become your exclusive agency?
A:Only if you have this interest,you can be our agent if we don't have exclusive agent in your market.
if you want to be exclusive agent,we will have an annual sales amount target requirement,welcome to further discuss about more details,we're open to any constructive advice.
