Product Details:
|
| Type: | Type1/type2/GBT | Model: | Modelx, Model3, Model 3 Performance, MODEL S, Tang, Han, SONG Pro, Qin |
|---|---|---|---|
| Year: | 2017-2019, 2019-, 2019-, 2016-2019, 2017-2019, 2019-, 2020-, 2019- | Function: | Wallbox Ev Charger |
| Car Fitment: | BYD, Tesla | Charging Port: | Tyep1/type2/gbt |
| Connection: | Tyep1/type2/gbt | Voltage: | 220V |
| Warranty: | 1 Year | Installation Method: | Floor-standing/Wall-mounted |
| Application: | AC Home Charging | Grid Frequency: | 50Hz±10Hz |
| IP Protection Level: | IP54-IP67 | Output Powe: | 7KW |
| USB: | Upgrade, Download | RS485: | Point To Point Communication |
| Insulation Detection: | AC+ And PE, AC- And PE Impedance | Connection Temperature: | Plug Temperature Detection |
| AC Leakage: | RCD |

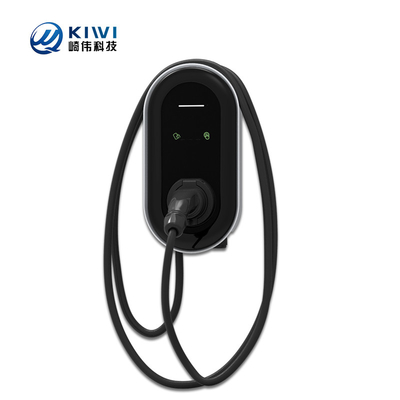

new energy Wall-mounted Fast ev charging stations 7kw charger pile Type 2 Wallbox For Home Electric Vehicle Ev Charger | ||
Installation Method | Wall-mounted, column (optional) | |
Rated Power | 7 KW | |
Charging mode | Plug &Charge、RFID(Optional) | |

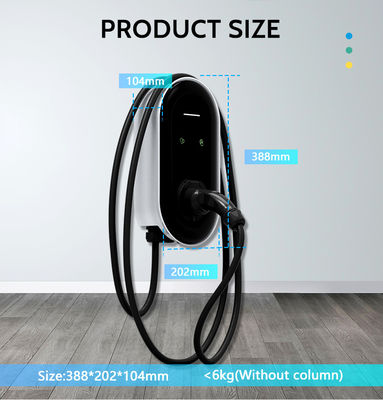

Size (H * W * D) | 388*202*104mm | |
Weight | 6kg(Without column) | |
Input voltage | 1-phase AC 220V | |
Input Current | 1phase 0~32A | |
Output voltage | 220V±20% | |
Output current | 1phase 0-32A | |
Charging connection method | 1、Connection method C (plug version) 2、Connection method B (socket version) | |
Plug wire length | 5m(customizable) | |
Plug standard | Type-1/Type-2/GB/T | |
protection | over voltage protection/under voltage/over load/short circuit/earth leakage/over-temp | |
Protection level | IP54 | |
Operating temperature | -20℃~60℃ | |
Relative humidity | 5%~95%，No condensation | |
Lifespan | ≥10000 times | |
