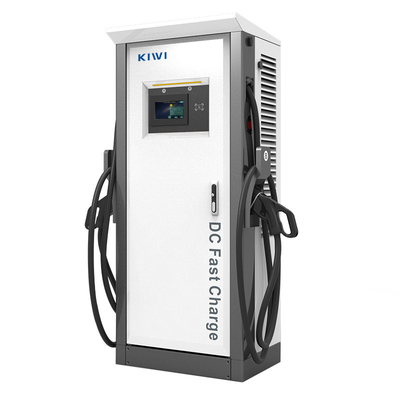

80KW DC Output Current OCPP CCS 2 EV Charger Point for Benz EQA EV 60KW 120KW 160KW

80KW DC Output Current OCPP CCS 2 EV Charger Point for Benz EQA EV 60KW 120KW 160KW
80KW DC Output Current OCPP CCS 2 EV Charger Point for Benz EQA EV 60KW 120KW 160KW 80KW DC Output Current OCPP CCS 2 EV Charger Point for Benz EQA EV 60KW 120KW 160KW 80KW DC Output Current OCPP CCS 2 EV Charger Point for Benz EQA EV 60KW 120KW 160KW 80KW DC Output Current OCPP CCS 2 EV Charger Point for Benz EQA EV 60KW 120KW 160KW 80KW DC Output Current OCPP CCS 2 EV Charger Point for Benz EQA EV 60KW 120KW 160KW

Large Image :  80KW DC Output Current OCPP CCS 2 EV Charger Point for Benz EQA EV 60KW 120KW 160KW

Product Details:
Place of Origin: Guangdong, China
Brand Name: KIWI
Model Number: F6-DC1000V-80KW/A
Payment & Shipping Terms:
Minimum Order Quantity: 3 pieces
Price: $15,000.00/pieces 3-4 pieces
Packaging Details: professional plywood box
Supply Ability: 1000 Piece/Pieces per Month
Contact Now

80KW DC Output Current OCPP CCS 2 EV Charger Point for Benz EQA EV 60KW 120KW 160KW

Description
Output Power: 80kW Installation Method: Floor-standing
Start-up And Billing Method: RFID,plug&charge,Scan QR Code Input Voltage: Three Phase AC 380V±20%(ABC+N+PE)
Input Current Range: AC 0A~136.5A Grid Frequency: 50Hz±10Hz
Output Current: 80KW DC 0 ~300A Output Voltage: DC 150V~1000V
IP Protection Level: IP54 OCPP: OCPP 1.6J/1.5J
AC Leakage: RCD

Features
Discription
Rated Power
80KW
Charging mode
RFID、plug and charge、Scan QRCode
Size (H * W * D)
700*340*1670mm
Weight
250kg
Plug wire length
3.5m(customizable)
Plug standard
CHAdeMO or CCS1 orCCS2 orGB/T
Protection level
IP54
Cooling Method
Wind cooling
Standard :LAN
Optional :WIFI、4G
server communication, APP communication
CPP
OCPP 1.6J/1.5J
Input
Input Voltage
Three-phase AC380V 50/60Hz（L1+L2+L3+N+PE）
Input Current
Each phase 0~136.5A
Leakage Protection
Type B RCD 30mA + 6mA
Operating temperature
-20℃~60℃
Output
Output voltage
DC 150V~1000V
Output current
0 ~300A
Human-computer interaction
LED indicator
Power supply, charging green, fault red
LCD
HD high-brightness industrial resistance display
80KW DC Output Current OCPP CCS 2 EV Charger Point for Benz EQA EV 60KW 120KW 160KW 0
80KW DC Output Current OCPP CCS 2 EV Charger Point for Benz EQA EV 60KW 120KW 160KW 1
80KW DC Output Current OCPP CCS 2 EV Charger Point for Benz EQA EV 60KW 120KW 160KW 2
80KW DC Output Current OCPP CCS 2 EV Charger Point for Benz EQA EV 60KW 120KW 160KW 3
80KW DC Output Current OCPP CCS 2 EV Charger Point for Benz EQA EV 60KW 120KW 160KW 4
80KW DC Output Current OCPP CCS 2 EV Charger Point for Benz EQA EV 60KW 120KW 160KW 5
80KW DC Output Current OCPP CCS 2 EV Charger Point for Benz EQA EV 60KW 120KW 160KW 6
80KW DC Output Current OCPP CCS 2 EV Charger Point for Benz EQA EV 60KW 120KW 160KW 7
80KW DC Output Current OCPP CCS 2 EV Charger Point for Benz EQA EV 60KW 120KW 160KW 8
80KW DC Output Current OCPP CCS 2 EV Charger Point for Benz EQA EV 60KW 120KW 160KW 9
80KW DC Output Current OCPP CCS 2 EV Charger Point for Benz EQA EV 60KW 120KW 160KW 10
80KW DC Output Current OCPP CCS 2 EV Charger Point for Benz EQA EV 60KW 120KW 160KW 11
80KW DC Output Current OCPP CCS 2 EV Charger Point for Benz EQA EV 60KW 120KW 160KW 12
80KW DC Output Current OCPP CCS 2 EV Charger Point for Benz EQA EV 60KW 120KW 160KW 13
80KW DC Output Current OCPP CCS 2 EV Charger Point for Benz EQA EV 60KW 120KW 160KW 14
80KW DC Output Current OCPP CCS 2 EV Charger Point for Benz EQA EV 60KW 120KW 160KW 15
80KW DC Output Current OCPP CCS 2 EV Charger Point for Benz EQA EV 60KW 120KW 160KW 16
80KW DC Output Current OCPP CCS 2 EV Charger Point for Benz EQA EV 60KW 120KW 160KW 17
80KW DC Output Current OCPP CCS 2 EV Charger Point for Benz EQA EV 60KW 120KW 160KW 18
Customers Also Like to Ask These Questions
Q: How is your electric vehicle charging station after-sale service?
A:1/We will build a whatsapp/skype/wechat service group with technical engineers and company leader if need;
2/We provide 24/7 online service,so you're welcome to contact us any time you need;
3/Will change the part for free during warranty if non-human damage,for other problems,we'd like to supply customer the part at original cost.

Q: How is your payment method?
A: Same as other ev charging stations suppliers,normally 30%-50% deposit and balance paid off before shipment,special requirement customer please contact us for further discussion.

Q: How long is your normal delivery time?
A: 1/For stock ev charger,can arrange the shipment immediately after you confirm the order;
2/For custom AC ev charger less than 100pcs,normally 7-15 days;
3/For custom DC ev charger less than 100pcs,normally 15-25 days;

Q: Can I use my own card or app at your electric car charging stations?
A: Normally the RFID card and app have to identify our electric charger,so we will provide you 3 free RFID card for each charger.

Q:Will your electric car charger charging slower in winter?
A:The electric charging station may need a little longer warm up time before normal run,but this is very small change,it won't influence the output power,so we can ignore this influence.

Q:Can you provide a video how to install the electric vehicle charger?
A:Yes we have the installation guide video,it's very easy and anyone who know a little about electricity safety can finish this work,we will also be ready online to help your any possible question.

Q:How can I become your exclusive agency?
Only if you have this interest,you can be our agent if we don't have exclusive agent in your market.
if you want to be exclusive agent,we will have an annual sales amount target requirement,welcome to further discuss about more details,we're open to any constructive advice.
80KW DC Output Current OCPP CCS 2 EV Charger Point for Benz EQA EV 60KW 120KW 160KW 19
