Product Details:
|
| Interface Standard: | CCS1/CCS2 | Output Current: | 0-400A |
|---|---|---|---|
| Output Power: | 320KM-1200KW | Input Voltage: | DC150V-1000V |
| Installation Method: | Floor-standing | Start-up And Billing Method: | RFID,plug And Charge,Scan QRCode |
| Input Voltage: | 150V-1000V (constant Power Range 300V-1000V) | Input Current Range: | AC 0A~1820A |
| Grid Frequency: | 50Hz±10Hz | Output Current: | 320KW-1200KW DC |
| Output Voltage: | DC 150V~1000V | IP Protection Level: | IP54 |
| OCPP: | OCPP 1.6J/1.5J | AC Leakage: | RCD B |
| Port: | Shenzhen,Foshan,HK,etc. |

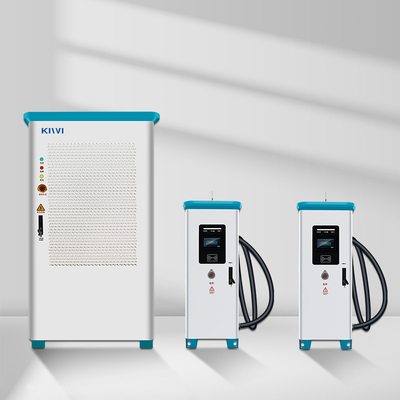

KIWI DC ev charger ccs 320KW commercial fast pile 240kw 180kw 120kw 150kw ocpp ev charging station | ||
Features | Discription | |
Rated Power | 450KW-1200KW | |
Charging mode | RFID、plug and charge、Scan QRCode | |
Size (H * W * D) | 2183*1163*1056.4mm（Ark of the Lord） 1670*692*392mm（Ark of points） | |
Weight | ≤200kg | |
Plug wire length | 5m(customizable) | |
Safety standards | GB/T20234、GB/T18487、NB/T33008、NB/T33002、IEC -62196-2、EN 61851 | |
Protection level | IP54 | |
Cooling Method | Wind cooling | |
Standard :LAN Optional :WIFI、4G | server communication, APP communication | |
OCPP | OCPP 1.6J/1.5J | |
Input | ||
Input Voltage | 150V-1000V (constant power range 300V-1000V) | |
Input Current | Each phase 0~1820A | |
150KW,AC 0A~230A, 75mm cable | ||
180KW,AC 0A~280A, 90mm cable | ||
Leakage Protection | Type B RCD 30mA + 6mA | |
Operating temperature | -20℃~70℃ | |
Output | With AC30mA leakage plastic case | |
Output voltage | DC 150V~1000V | |
Output current | DC 0 ~4000A | |
Electrical protections | ||
Under voltage/Over voltage/Short circuit/Over current/Leakage Protection/Over temperature/Emergency stop/Insulation detection/Surge protection | ||
Human-computer interaction | ≥0.98 (Above 50% load) | |
LED indicator | Power supply, charging green, fault red | |
LCD | HD high-brightness industrial resistance display | |
