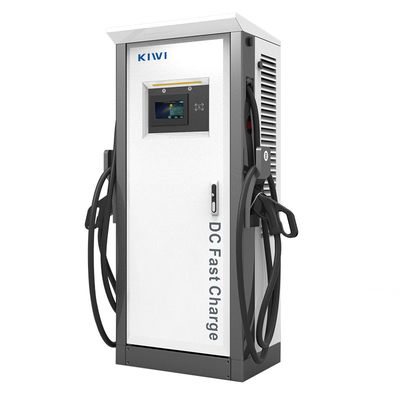

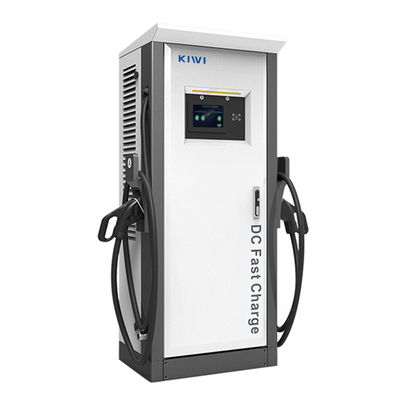

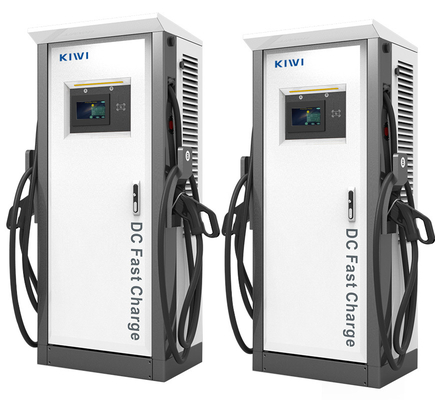

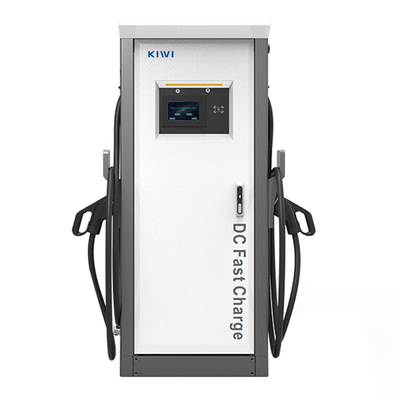

Product Details:
|
| Interface Standard: | J1770 | Output Current: | 0~100A |
|---|---|---|---|
| Output Power: | 120KW | Input Voltage: | 380V |
| Installation Method: | Floor-standing | Start-up And Billing Method: | RFID,plug And Charge,Scan QRCode |
| Grid Frequency: | 50Hz±10Hz | IP Protection Level: | IP54 |
| OCPP: | OCPP 1.6J/1.5J | USB: | Upgrade, Download |
| RS485: | Point To Point Communication | Insulation Detection: | DC+ And PE, DC- And PE Impedance |
| Connection Temperature: | Plug Temperature Detection | DC Leakage: | RCD |
| Port: | Yantian Port, Shekou |
Item | Value |
Rated Power | 60KW/120KW/150KW |
Charging mode | RFID、plug and charge、APP(OCPP) |
Size (H * W * D) | 700*340*1670mm |
Weight | 258kg |
Plug wire length | 3.5m(customizable) |
Plug standard | CHAdeMO or CCS1 orCCS2 orGB/T |
Protection level | IP54 |
Cooling Method | Wind cooling |
Standard :LAN Optional :WIFI、4G | server communication, APP communication |
OCPP | OCPP 1.6J/1.5J |
Input | ||
Input Voltage | Three-phase AC380V 50/60Hz（L1+L2+L3+N+PE） | |
Input Current | Each phase 0~92A | |
Leakage Protection | Type B RCD 30mA + 6mA | |
Operating temperature | -20℃~60℃ | |
Output | ||
Output voltage | DC 150V~1000V | |
Output current | 60KW DC 0 ~100A | |
Human-computer interaction | ||
LED indicator | Power supply, charging green, fault red | |
LCD | 7 Inch HD high-brightness industrial resistance display | |
