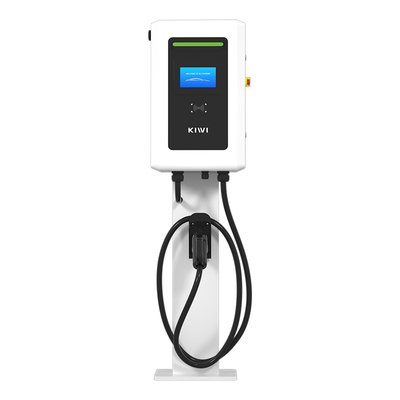

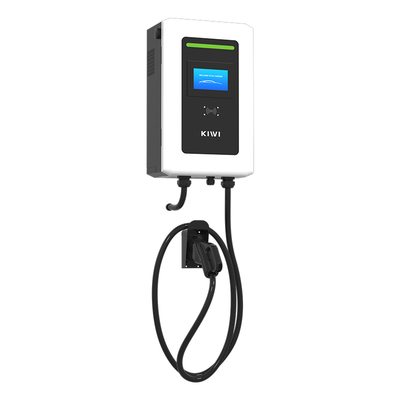

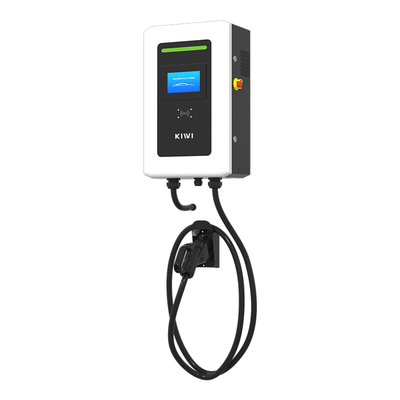

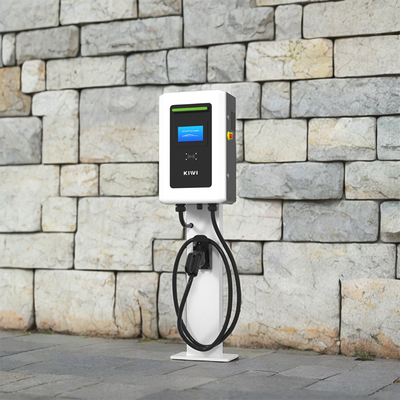

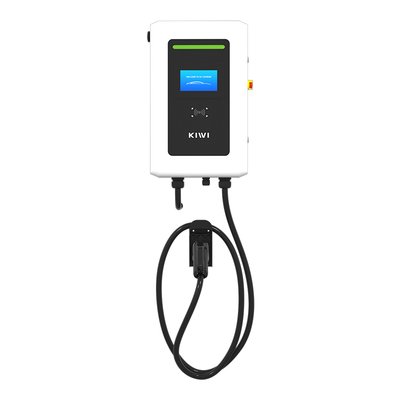

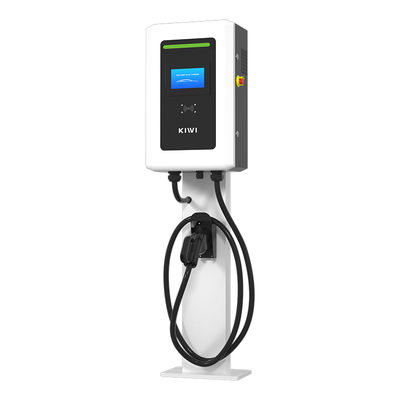

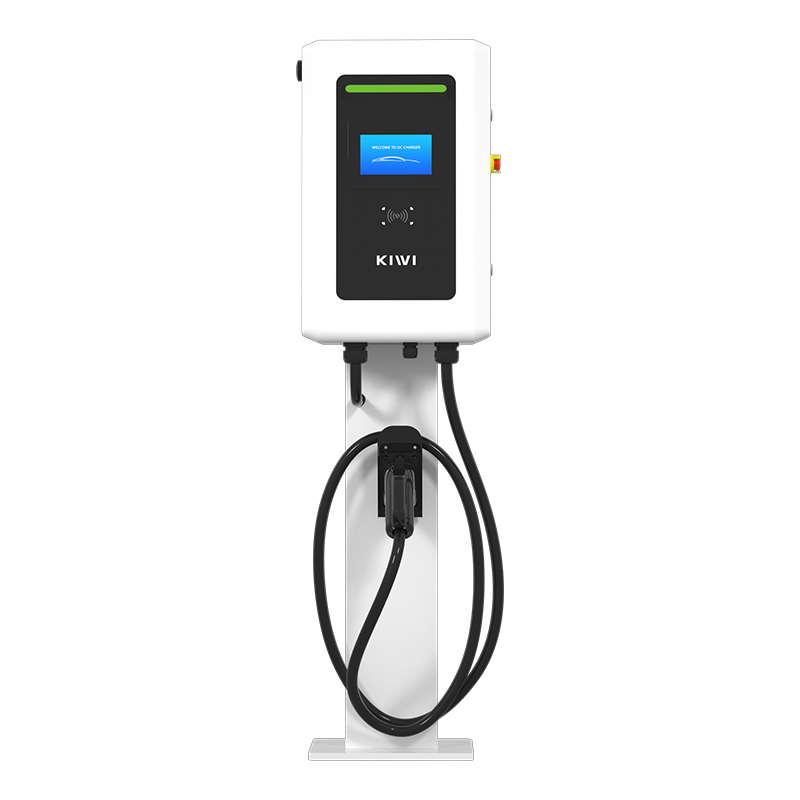

20kW 30kW 40kW DC EV Charger with CCS1 CCS2 GB/T CHAdeMO 130A

20kW 30kW 40kW DC EV Charger with CCS1 CCS2 GB/T CHAdeMO 130A
20kW 30kW 40kW DC EV Charger with CCS1 CCS2 GB/T CHAdeMO 130A 20kW 30kW 40kW DC EV Charger with CCS1 CCS2 GB/T CHAdeMO 130A 20kW 30kW 40kW DC EV Charger with CCS1 CCS2 GB/T CHAdeMO 130A 20kW 30kW 40kW DC EV Charger with CCS1 CCS2 GB/T CHAdeMO 130A 20kW 30kW 40kW DC EV Charger with CCS1 CCS2 GB/T CHAdeMO 130A 20kW 30kW 40kW DC EV Charger with CCS1 CCS2 GB/T CHAdeMO 130A

Large Image :  20kW 30kW 40kW DC EV Charger with CCS1 CCS2 GB/T CHAdeMO 130A

Product Details:
Place of Origin: Guangdong, China
Brand Name: KIWI
Model Number: F5-DC1000V-20kW 30kW 40kW/A
Payment & Shipping Terms:
Minimum Order Quantity: 2
Price: $2,550-4,250
Contact Now

20kW 30kW 40kW DC EV Charger with CCS1 CCS2 GB/T CHAdeMO 130A

Description
Interface Standard: CCS1 CCS2 GB/T CHAdeMO Output Current: DC0-130A
Output Power: 20kW 30kW 40kW Input Voltage: 380V
Input Current: AC 0A~65A IP Protection: IP55
Output Voltage: DC 200V~1000V RS485: Point To Point Communication
Cooling Method: Intelligent Air Cooling Grid Frequency: 50Hz /60Hz
DC Output Voltage: 150-1000VDC Cable Length: 5M Or Customized
User Interface: 7 Inch LCD Touchscreen Operating Temperature: -20 °C To 55 °C
Dimensions: 263*410*660mm Net Weight: ≤48kg
Highlight:

20kW DC EV charger with CCS1

,

30kW DC EV charger with CCS2

,

40kW DC EV charger with CHAdeMO

CCS Chademo GB/T 20kW 30kW 40kW 130A Wall-Mounted EV DC Fast Charging Station EV Charger
20kW 30kW 40kW DC EV Charger with CCS1 CCS2 GB/T CHAdeMO 130A 0 20kW 30kW 40kW DC EV Charger with CCS1 CCS2 GB/T CHAdeMO 130A 1 20kW 30kW 40kW DC EV Charger with CCS1 CCS2 GB/T CHAdeMO 130A 2 20kW 30kW 40kW DC EV Charger with CCS1 CCS2 GB/T CHAdeMO 130A 3 20kW 30kW 40kW DC EV Charger with CCS1 CCS2 GB/T CHAdeMO 130A 4 20kW 30kW 40kW DC EV Charger with CCS1 CCS2 GB/T CHAdeMO 130A 5
Technical Specifications
MODEL kW-20S kW-30S kW-40S
AC Input Power 40A, 400V 60A, 400V 80A, 400V
Input type 3P + N + PE
Input Voltage Range AC380V~400V
Input Frequency 50Hz /60Hz
THD ≤5%
DC Output Power Rating (MAX) 20kW 30kW 40kW
DC Output Voltage 150-1000VDC
Cable Length 5M or Customized
Cellular Communication GSM, 4G, LTE
Connectivity Internet access via 4G/3G/Ethernet (RJ45)
User Authentication App operation and RFID
User Interface 7 inch LCD high-contrast touchscreen
Communiation Protocols Proprietary and OCPP 1.6J/2.0
Language System English, Chinese or Customized
Protection Rating IP55 and IK10 (cabinet) / IK08 (touchscreen)
Operating Temperature -20°C to 55°C
Storage Temperature -40°C to 70°C
Humidity < 95%, non-condensing
Mounting Wall-mount/Floor stand installation
Dimensions (mm) 263*410*660mm
Net Weight (kg) ≤48kg
20kW 30kW 40kW DC EV Charger with CCS1 CCS2 GB/T CHAdeMO 130A 6 20kW 30kW 40kW DC EV Charger with CCS1 CCS2 GB/T CHAdeMO 130A 7 20kW 30kW 40kW DC EV Charger with CCS1 CCS2 GB/T CHAdeMO 130A 8 20kW 30kW 40kW DC EV Charger with CCS1 CCS2 GB/T CHAdeMO 130A 9
Frequently Asked Questions
How is your electric vehicle charging station after-sale service?
  • We will build a whatsapp/skype/wechat service group with technical engineers and company leader if needed
  • We provide 24/7 online service, so you're welcome to contact us any time you need
  • Will change the part for free during warranty if non-human damage, for other problems, we'd like to supply customer the part at original cost
How is your payment method?
Same as other EV charging stations suppliers, normally 30%-50% deposit and balance paid off before shipment. Special requirement customer please contact us for further discussion.
How long is your normal delivery time?
  • For stock EV charger, can arrange the shipment immediately after you confirm the order
  • For custom AC EV charger less than 100pcs, normally 7-15 days
  • For custom DC EV charger less than 100pcs, normally 15-25 days
Can I use my own card or app at your electric car charging stations?
Normally the RFID card and app have to identify our electric charger, so we will provide you 3 free RFID cards for each charger.
Will your electric car charger charging slower in winter?
The electric charging station may need a little longer warm up time before normal run, but this is very small change, it won't influence the output power, so we can ignore this influence.
Can you provide a video how to install the electric vehicle charger?
Yes we have the installation guide video, it's very easy and anyone who know a little about electricity safety can finish this work, we will also be ready online to help your any possible question.
How can I become your exclusive agency?
Only if you have this interest, you can be our agent if we don't have exclusive agent in your market. If you want to be exclusive agent, we will have an annual sales amount target requirement, welcome to further discuss about more details, we're open to any constructive advice.

Tag:

split ev charger,

electric vehicle dc fast charger,

dc ev charger
