7kW AC EV Charger with Type-1/Type-2/GB/T Plug and RFID

7kW AC EV Charger with Type-1/Type-2/GB/T Plug and RFID
7kW AC EV Charger with Type-1/Type-2/GB/T Plug and RFID 7kW AC EV Charger with Type-1/Type-2/GB/T Plug and RFID 7kW AC EV Charger with Type-1/Type-2/GB/T Plug and RFID 7kW AC EV Charger with Type-1/Type-2/GB/T Plug and RFID 7kW AC EV Charger with Type-1/Type-2/GB/T Plug and RFID 7kW AC EV Charger with Type-1/Type-2/GB/T Plug and RFID

Large Image :  7kW AC EV Charger with Type-1/Type-2/GB/T Plug and RFID

Product Details:
Place of Origin: Guangdong, China
Brand Name: KIWI
Model Number: S1-AC220V-7KW
Payment & Shipping Terms:
Minimum Order Quantity: 2
Price: $270-320
Contact Now

7kW AC EV Charger with Type-1/Type-2/GB/T Plug and RFID

Description
Output Power: 7 KW Input Voltage: 200 - 220v
Interface Standard: Type-1/Type-2/GB/T IP Protection: IP55
OCPP Version: OCPP 1.6J/1.5J User Interface: 3.8 Inch LCD Or LED
Communication Protocols: Proprietary And OCPP 1.6J/2.0.1 RFID Reader: ISO/IEC 14443 A/B Mifare RFiD Reader
Rated Power: 7KW、11KW、22KW Size: 202*104*388mm
Weight: 6kg(Without Column) Input Current: Each Phase 0~32A
Output Voltage: AC 220V±20% Output Current: Each Phase 0-32A
Operating Temperature: -35°C To +50°C
Highlight:

7kW AC EV charger with RFID

,

Type-2 EV charger with 7kW power

,

GB/T plug AC EV charger

EV Charging Station 7kw 11kw 22kw AC DC Fast EV Car Charger
7kW AC EV Charger with Type-1/Type-2/GB/T Plug and RFID 0 7kW AC EV Charger with Type-1/Type-2/GB/T Plug and RFID 1 7kW AC EV Charger with Type-1/Type-2/GB/T Plug and RFID 2 7kW AC EV Charger with Type-1/Type-2/GB/T Plug and RFID 3 7kW AC EV Charger with Type-1/Type-2/GB/T Plug and RFID 4 7kW AC EV Charger with Type-1/Type-2/GB/T Plug and RFID 5 7kW AC EV Charger with Type-1/Type-2/GB/T Plug and RFID 6 7kW AC EV Charger with Type-1/Type-2/GB/T Plug and RFID 7 7kW AC EV Charger with Type-1/Type-2/GB/T Plug and RFID 8 7kW AC EV Charger with Type-1/Type-2/GB/T Plug and RFID 9
Item Specification

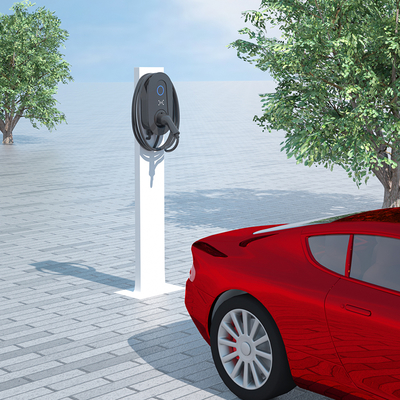

Installation Method Wall-mounted, column (optional)
Rated Power 7KW, 11KW, 22KW
Charging mode APP(QRCode), Plug & Charge, RFID
Size (H * W * D) 202*104*388mm
Weight 6kg (Without column)
Input
Input voltage 230VAC/400 VAC/400 VAC
Input Current Each phase 0~32A
Leakage Protection Overcurrent, overvoltage, undervoltage, ground fault, integrated surge protection, RDC (typeA + DC6mA), over-temperature protection
Output
Output voltage AC 220V±20%
Output current Each phase 0-32A
Connection method
Number of plug 1
Charging connection method 1. Connection method C (plug version)
2. Connection method B (socket version)
Plug wire length 5m (customizable)
Plug standard Type-1/Type-2/GB/T
Human-computer interaction
LED LED Status light
Other
Protection level IP55
Operating temperature -35°C to +50°C
Relative humidity <95%, No condensation
Lifespan ≥10000 times
Frequently Asked Questions
Q: How is your electric vehicle charging station after-sale service?
  • We will build a WhatsApp/Skype/WeChat service group with technical engineers and company leader if needed
  • We provide 24/7 online service
  • Will change the part for free during warranty if non-human damage
Q: How is your payment method?
Same as other EV charging stations suppliers, normally 30%-50% deposit and balance paid before shipment.
Q: How long is your normal delivery time?
  • Stock EV charger: immediate shipment after order confirmation
  • Custom AC EV charger (<100pcs): 7-15 days
  • Custom DC EV charger (<100pcs): 15-25 days
Q: Can I use my own card or app at your electric car charging stations?
The RFID card and app need to identify our electric charger. We provide 3 free RFID cards for each charger.
Q: Will your electric car charger charge slower in winter?
The charging station may need slightly longer warm-up time, but this won't affect output power significantly.
Q: Can you provide a video how to install the electric vehicle charger?
Yes, we provide installation guide video and online support for any questions.
Q: How can I become your exclusive agency?
You can be our agent if we don't have one in your market. Exclusive agents have annual sales targets.
