Product Details:
|
| Interface Standard: | CCS1 CCS2 GB/T CHAdeMO | Output Current: | 0-100A |
|---|---|---|---|
| Output Power: | 60kW 120kW 150kW | Input Voltage: | 150-1000V |
| Installation Method: | Floor-standing | Start-up And Billing Method: | RFID, APP Operation |
| Input Voltage: | Three Phase AC 380V±20%(ABC+N+PE) | Input Current Range: | AC 0A~92A, 50mm Cable |
| Grid Frequency: | 50Hz±10Hz | Output Current: | 60KW DC 0 ~100A |
| Output Voltage: | DC 150V~1000V | IP Protection Level: | IP55 |
| OCPP: | OCPP 1.6J/2.01J | AC Leakage: | RCD |
| Highlight: | Apartments DC Fast EV Charger,Hotels DC Fast EV Charger,Dual Smart DC Fast EV Charger |
||
Output power | kW-60S | kW-120S | kW-150S | ||
Input Characteristic | |||||
AC Input Power | 115A, 400V | 182A, 400V | 228A, 400V | ||
Input type | 3P + N + PE | ||||
Input Voltage Range | AC380V~400V | ||||
Input Frequency | 50Hz /60Hz | ||||
THD | ≤5% | ||||
Ouput Characteristic | |||||
DC Output Power Rating (MAX) | 60kW | 120kW | 150kW | ||
DC Output Voltage | 150-1000VDC | ||||
Cable Length | 5M or Customized | ||||
Others | |||||
Distribution Systems | TN-S. TN-C, TN-C-S, TT (required external RCD) | ||||
Connector Type | 3P + N + PE | ||||
Protection | Overcurrent, overvoltage, undervoltage, integrated surge protection, ground fault including DC leakage protection, door opening protection | ||||
Power Factor (Full Load) | ≥0.98 | ||||
Standby Power | ≤5% | ||||
Standby Power | <36W | ||||
Short Circuit Current | 10kA | ||||
Pre-charge Current | <1A | ||||
Inrush Current | <55A | ||||
Leakage Current | 0.8mA | ||||
Energy Metering | Standard: Meter for DC outlet, Optional: AC inlet | ||||
Cellular Communication | GSM, 4G, LTE | ||||
USER INTERFACE | |||||
Connectivity | Internet access via 4G/3G/Ethernet (RJ45) | ||||
User Authentication | RFID, QR code | ||||

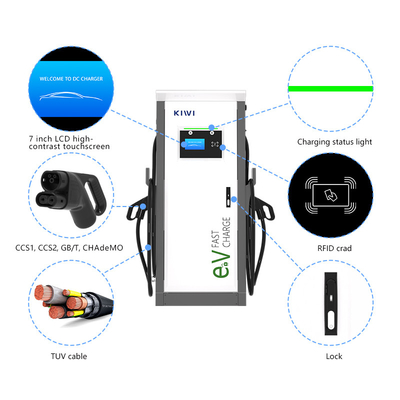

User Interface | 7 inch LCD high-contrast touchscreen | ||||
Communiation Protocols | Proprietary and OCPP 1.6J/2.0 | ||||
RFID Reader | ISO/IEC 14443 A/B Mifare RFID reader | ||||
Emergency Button | Yes | ||||
Language System | English, Chinese or Customized | ||||
GENERAL CHARACTERISTIC | |||||
Protection Rating | IP55 and IK10 (cabinet) / IK08 (touchscreen) | ||||
Operating Altitude | ≤ 2000m | ||||
Operating Temperature | - 20 °C to 55 °C | ||||
Storage Temperature | -40 °C to 70 °C | ||||
Humidity | < 95%, non-condensing | ||||

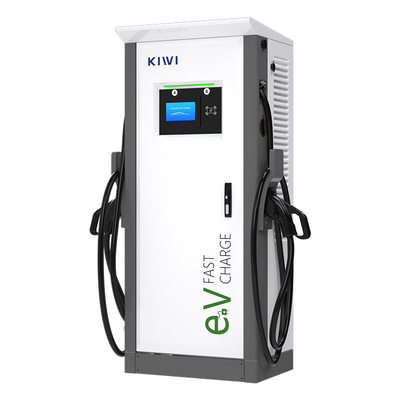

Mounting | Free-standing cabinet | ||||
Dimensions (mm） | 545*705*1675mm | ||||
Net Weight (kg) | ≤258kg | ≤285kg | ≤325kg | ||
COMPLIANCE STANDARDS | |||||
Codes & Standards | IEC 61851-21-2, IEC 61000, IEC/EN 61851-1, IEC 61851-23, IEC 61851-24, IEC 62196-1, IEC 62196-3, GBT18487, GBT20234, NB/T 33008.1, NB/T 33001 | ||||
Communication to the EV | DIN 70121, ISO/IEC 15118, GBT27930, GBT 34657, GBT 34658 | ||||
