Product Details:
|
| Interface Standard: | CCS1 | Output Current: | DC, 16A |
|---|---|---|---|
| Output Power: | 3.5kW, 3.5KW | Input Voltage: | 200 - 220v |
| Installation Method: | Portable | Start-up And Billing Method: | Plug &Charge |
| Grid Frequency: | 50Hz±10Hz | IP Protection Level: | IP67 |
| RS485: | Point To Point Communication | Insulation Detection: | AC+ And PE, AC- And PE Impedance |
| Connection Temperature: | Plug Temperature Detection | AC Leakage: | RCD |
| Highlight: | Portable Home Electrical Car Charger,3.5kw AC EV Charging Station,Type 2 AC EV Charging Station |
||
Item | Discription | |

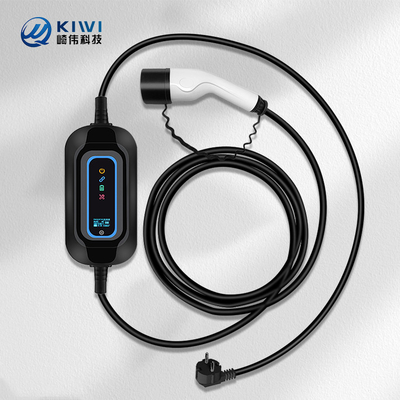

Type | Portable Home EV Charger | |
Rated Power | 3.5KW | |
Charging Mode | Plug &Charge | |

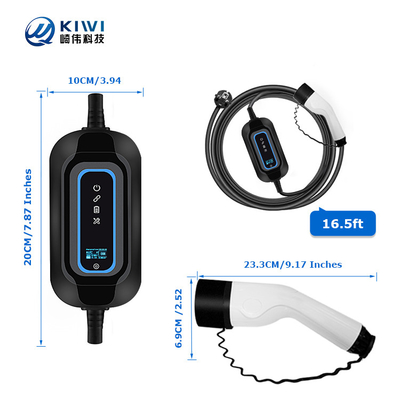

Size (H * W * D) | 200*100*60mm | |
Weight | 2.2kg | |
Input | ||
Input Voltage | AC220V 50Hz | |
Input Current | Each phase 0~16A | |
Output | ||
Output voltage | AC 220V±20% | |
Output current | 0-16A | |
Plug Info | ||
Plug wire length | 5m(customizable) | |

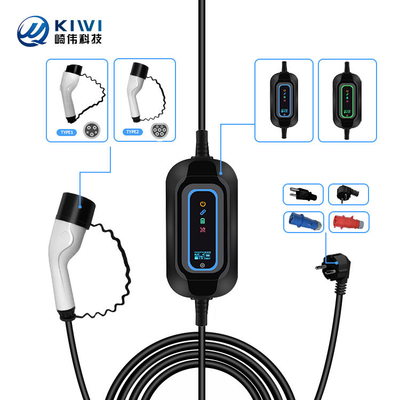

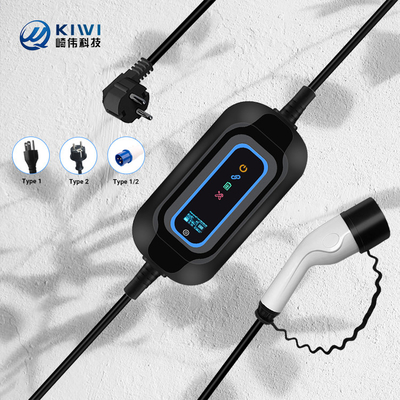

Plug standard | Type-1/Type-2/GB/T | |
Other | ||

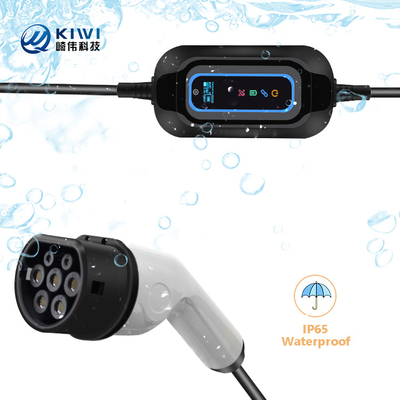

Protection level | IP67 | |
Operating temperature | -20℃~60℃ | |
Relative humidity | 5%~95%,No condensation | |
Lifespan | ≥10000 times | |
