Product Details:
|
| Interface Standard: | CCS1 CCS2 GB/T CHAdeMO | Output Current: | DC0-130A |
|---|---|---|---|
| Output Power: | 40kW | Input Voltage: | 380V |
| Installation Method: | Wall-mount/Floor Stand Installation | Charging Mode: | Automatic Charging After Starting The Button |
| Input Voltage: | AC380V~400V | Input Current Range: | AC 0A~65A |
| IP Protection Level: | IP55 | Output: | DC 200V~1000V,1A--130A |
| RS485: | Point To Point Communication | Rated Power: | 20kW 30kW 40kW |
| Cooling Way: | Intelligent Air Cooling | The Grid Frequency: | 50Hz /60Hz |
| Highlight: | 20kW DC EV Charger Station,40kW DC EV Charger Station,30kW DC EV Charger Station |
||
MODEL | kW-20S | kW-30S | kW-40S | ||
AC Input Power | 40A, 400V | 60A, 400V | 80A, 400V | ||
Input type | 3P + N + PE | ||||
Input Voltage Range | AC380V~400V | ||||
Input Frequency | 50Hz /60Hz | ||||
THD | ≤5% | ||||
DC Output Power Rating (MAX) | 20kW | 30kW | 40kW | ||
DC Output Voltage | 150-1000VDC | ||||
Cable Length | 5M or Customized | ||||
Cellular Communication | GSM, 4G, LTE | ||||
Connectivity | Internet access via 4G/3G/Ethernet (RJ45) | ||||
User Authentication | App operation and RFID | ||||

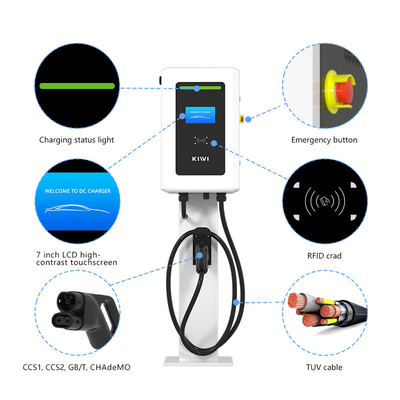

User Interface | 7 inch LCD high-contrast touchscreen | ||||
Communiation Protocols | Proprietary and OCPP 1.6J/2.0 | ||||
Language System | English, Chinese or Customized | ||||
Protection Rating | IP55 and IK10 (cabinet) / IK08 (touchscreen) | ||||
Operating Temperature | - 20 °C to 55 °C | ||||
Storage Temperature | -40 °C to 70 °C | ||||
Humidity | < 95%, non-condensing | ||||

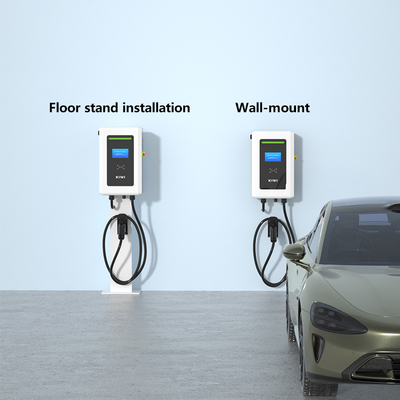

Mounting | Wall-mount/Floor stand installation | ||||
Dimensions (mm) | 263*410*660mm | ||||
Net Weight (kg) | ≤48kg | ||||
