Fast Dc Ccs Electric Car Charger 60Kw 120KW CCS Type 2 For OCPP 1.6J/1.5J

Fast Dc Ccs Electric Car Charger 60Kw 120KW CCS Type 2 For OCPP 1.6J/1.5J
Fast Dc Ccs Electric Car Charger 60Kw 120KW CCS Type 2 For OCPP 1.6J/1.5J Fast Dc Ccs Electric Car Charger 60Kw 120KW CCS Type 2 For OCPP 1.6J/1.5J Fast Dc Ccs Electric Car Charger 60Kw 120KW CCS Type 2 For OCPP 1.6J/1.5J Fast Dc Ccs Electric Car Charger 60Kw 120KW CCS Type 2 For OCPP 1.6J/1.5J Fast Dc Ccs Electric Car Charger 60Kw 120KW CCS Type 2 For OCPP 1.6J/1.5J Fast Dc Ccs Electric Car Charger 60Kw 120KW CCS Type 2 For OCPP 1.6J/1.5J

Large Image :  Fast Dc Ccs Electric Car Charger 60Kw 120KW CCS Type 2 For OCPP 1.6J/1.5J

Product Details:
Place of Origin: Guangdong, China
Brand Name: KIWI
Model Number: 60KW / 120KW / 150KW
Payment & Shipping Terms:
Minimum Order Quantity: 2 pieces
Price: $8,999.00 - $25,999.00/pieces
Packaging Details: professional plywood box
Supply Ability: 1000 Piece/Pieces per Month
Contact Now

Fast Dc Ccs Electric Car Charger 60Kw 120KW CCS Type 2 For OCPP 1.6J/1.5J

Description
Type: DC Fast Charger Model: X1, Kona, I-PACE, Leaf, TAYCAN (Y1A), Model X, Model 3
Year: 2017-2019, 2017-, 2017-2019, 2017-2019, 2018-2019, 2017-, 2020- Function: DC Charging Station
Car Fitment: Nissan, Bmw, Jaguar, Tesla, TESLA M., Hyundai, PORSCHE Charging Port: NO
Connection: CCS1/CCS2/CHAdeMO/GB/T Voltage: 380V
Warranty: 1 Year Design Style: Modern
Installation Method: Floor-standing Start-up And Billing Method: RFID,plug And Charge,Scan QRCode
Input Voltage: Three Phase AC 380V±20%(ABC+N+PE) Input Current Range: AC 0A~92A, 50mm Cable
Grid Frequency: 50Hz±10Hz Output Current: 60KW DC 0 ~100A
Output Voltage: DC 200V~1000V IP Protection Level: IP54
OCPP: OCPP 1.6J/1.5J AC Leakage: RCD
Port: Shenzhen,Foshan,HK,etc.
Highlight:

ccs electric car charger OCPP 1.6J

,

dc charger for electric car OCPP 1.5J

,

120kw dc fast charger

Electric Car 60Kw Charging Station by KIWI 120KW Fast DC CCS Type 2 for OCPP 1.6J/1.5J
Fast Dc Ccs Electric Car Charger 60Kw 120KW CCS Type 2 For OCPP 1.6J/1.5J 0
Shenzhen Kiwi Technology Co., Ltd.
As a solution provider, we can help you calculate the cost of use and match the best product solution with the local policy.
Fast Dc Ccs Electric Car Charger 60Kw 120KW CCS Type 2 For OCPP 1.6J/1.5J 1
Questions Before Browsing
⚪ Where is your location?
⚪ What are the popular car models in your location?
⚪ How many EVs are expected to be parked in your parking lot?
⚪ Do you get the permission to install EV charging stations?
Why DC Fast Chargers
Fast Dc Ccs Electric Car Charger 60Kw 120KW CCS Type 2 For OCPP 1.6J/1.5J 2
Taking an electric vehicle with 80kWh of power and 15kWh of power consumption for 100KM as an example, the vehicle can complete 60kWh power replenishment in about one hour, so that it can be drived for 400KM (theoretically), which reduces the waiting time of users on the one hand, and on the other hand, it can also help you serve more users in limited parking spaces.

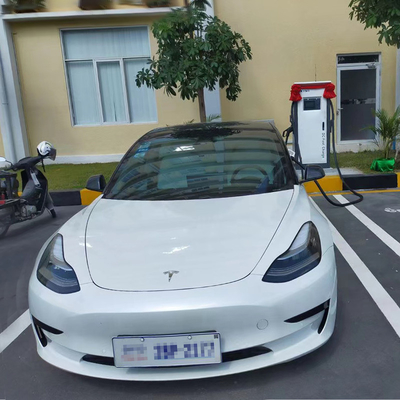

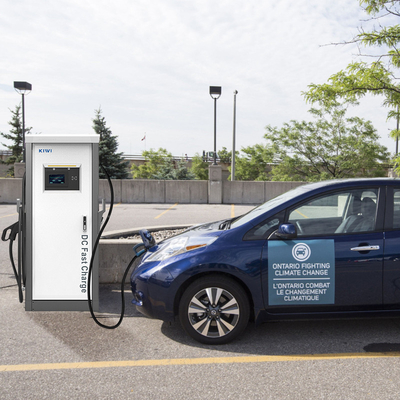

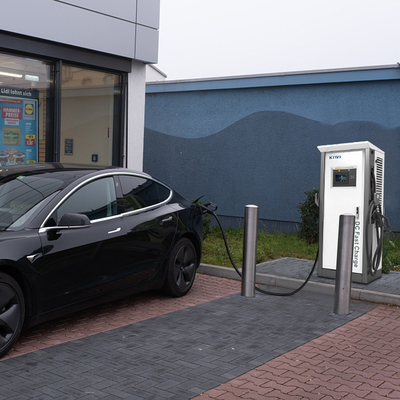

Some Cases for You
Fast Dc Ccs Electric Car Charger 60Kw 120KW CCS Type 2 For OCPP 1.6J/1.5J 3



Solar EV Charging Station
AC 22KW *8 & DC 120KW *10 & DC 240kw *10
Fast Dc Ccs Electric Car Charger 60Kw 120KW CCS Type 2 For OCPP 1.6J/1.5J 4



Government Offices Parking Lot
DC 60KW *10
For DC chargers above 60KW, basically used as commercial fast charging, we listed some commonly used use scenarios in the picture above, if you also want to operate a fast charging station, We have four suggestions for you: ⚪ DC fast charging can complete the charging of the car very quickly, there will be a lot of cars in and out of your charging station every day, so you must have a perfect management system to avoid poor user experience. ⚪ Due to the different models of different vehicles and the different charging power that can be accepted, your DC charger must be compatible with a variety of output power. ⚪ The charging station is basically in the open air environment, your charger must be sturdy and durable, and the failure rate should be low. ⚪ If you want to have a fast charging station, you must understand the local policy and complete the installation by a qualified and licensed construction team.
Products Description
Fast Dc Ccs Electric Car Charger 60Kw 120KW CCS Type 2 For OCPP 1.6J/1.5J 5
Output power
60KW
120KW
150KW
Output Current
0 ~ 200A
0 ~ 400A
0 ~ 500A
Input Voltage
AC 380V 50/60HZ


Output Voltage
DC 200V ~ 1000V


Charging Connector
CCS1 / CCS2 / CHAdeMO / GBT


Charging Standard
EC61851, IEC62196, ISO15118


Charging Mode
Plug&Charge / RFID / APP / OCPP(1 .5J / 1.6J)


Size
700 * 340 * 1670mm


Weight
>258kg


Input Current Range
AC 0 ~ 182A, 50mm cable
AC 0 ~ 230A, 75mm cable
AC 0 ~ 280A, 90mm cable
Leakage Protection
RCD AC 30mA


Plug Wire Length
5M ( Customizable)


Cooling Method
Wind cooling


Protection Level
IP54


Operation Temperature
-20C ~ 55 ℃


Relative Humidity
5%-95%


Installation Method
Floor, column ( optional)


Altitude Limitation
≤ 2000m


Operation Life
≥ 10000


More Parameters
Click here for more parameters


Fast Dc Ccs Electric Car Charger 60Kw 120KW CCS Type 2 For OCPP 1.6J/1.5J 6
Fast Dc Ccs Electric Car Charger 60Kw 120KW CCS Type 2 For OCPP 1.6J/1.5J 7
Fast Dc Ccs Electric Car Charger 60Kw 120KW CCS Type 2 For OCPP 1.6J/1.5J 8
Fast Dc Ccs Electric Car Charger 60Kw 120KW CCS Type 2 For OCPP 1.6J/1.5J 9
Fast Dc Ccs Electric Car Charger 60Kw 120KW CCS Type 2 For OCPP 1.6J/1.5J 10

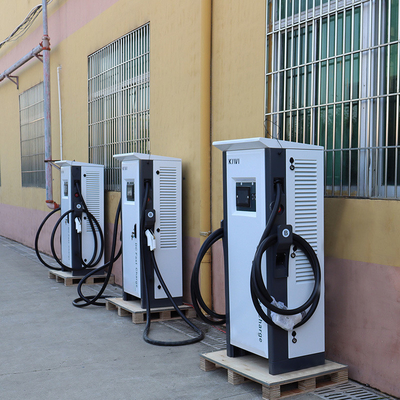

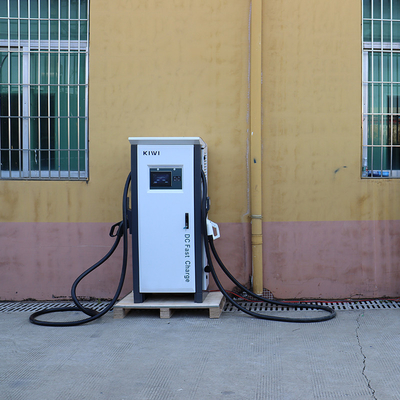

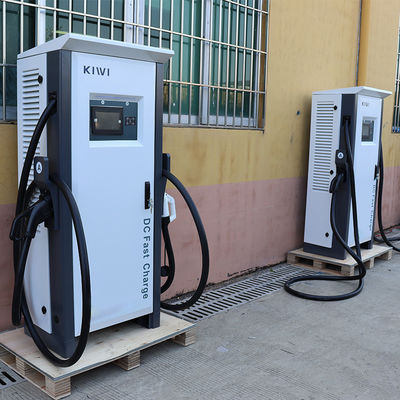

Real Shot of Appearance
Fast Dc Ccs Electric Car Charger 60Kw 120KW CCS Type 2 For OCPP 1.6J/1.5J 11
Real Shot of Interior
Customizable Options
Fast Dc Ccs Electric Car Charger 60Kw 120KW CCS Type 2 For OCPP 1.6J/1.5J 12
We will recommend you different charging guns according
to your location or provide charging guns according to your needs
Fast Dc Ccs Electric Car Charger 60Kw 120KW CCS Type 2 For OCPP 1.6J/1.5J 13

Please contact us to discuss the details of the solution

Why Choose Us
Fast Dc Ccs Electric Car Charger 60Kw 120KW CCS Type 2 For OCPP 1.6J/1.5J 14
Shenzhen Kiwi Technology Co.,Ltd.
Our company a high-tech enterprise specializing in complete ev charging solution from high-quality AC EV wallboxes, reliable DC EV fast charging stations with robust connectivity, App/PC operation software to innovative on-demand ev charging systems. Kiwi has 4 production bases with modern workshops, complete production line and advanced testing equipments. One of them is covered more than 26,000㎡. Kiwi has passed 1S09001, ISO14001 and ISO16949 certification.



2
The group has 2 sub-brands



8
Established 8 years ago



10
Global Sites 10+



15
Regional access certificate 15+



20
20+ R&D engineers



29
Served 29 countries



120
120+ experienced employees



330
330+ orders per year



2200
OCPP loading devices 2200+
Fast Dc Ccs Electric Car Charger 60Kw 120KW CCS Type 2 For OCPP 1.6J/1.5J 15
Fast Dc Ccs Electric Car Charger 60Kw 120KW CCS Type 2 For OCPP 1.6J/1.5J 16
Fast Dc Ccs Electric Car Charger 60Kw 120KW CCS Type 2 For OCPP 1.6J/1.5J 17
Fast Dc Ccs Electric Car Charger 60Kw 120KW CCS Type 2 For OCPP 1.6J/1.5J 18
Our sales teams come from different countries who are dedicated to provide the best product and service in EV charger industry for you.
Fast Dc Ccs Electric Car Charger 60Kw 120KW CCS Type 2 For OCPP 1.6J/1.5J 19
Our elite engineers have more than 10 years experience that they can solve your professional questions of EV charger.
Fast Dc Ccs Electric Car Charger 60Kw 120KW CCS Type 2 For OCPP 1.6J/1.5J 20
We have 100% real professional factory, if we both have the sincerity of cooperation, we will definitely give you the most competitive price.
Fast Dc Ccs Electric Car Charger 60Kw 120KW CCS Type 2 For OCPP 1.6J/1.5J 21
We welcome communication from people all over the world, whether you end up buying from us or not.
Fast Dc Ccs Electric Car Charger 60Kw 120KW CCS Type 2 For OCPP 1.6J/1.5J 22
Fast Dc Ccs Electric Car Charger 60Kw 120KW CCS Type 2 For OCPP 1.6J/1.5J 23
