As a solution provider, we can help you calculate the cost of use and match the best product solution with the local policy.
|
Product Details:
|
| Interface Standard: | Type 2 | Output Current: | AC, 3.5KW 16A Max ; 7KW 32A Max ; 11KW 16A Max |
|---|---|---|---|
| Output Power: | 11kW | Input Voltage: | 380v, 3.5KW & 7KW: 220/380V ; 11KW 380V |
| Installation Method: | Wall-mounted, Onboard | Start-up And Billing Method: | Plug&Charge/RFID/ APP |
| Charging Connector: | Type1,Type2,GB/T | Charging Standards: | IEC61851 IEC62196 |
| Size: | 220*100mm | Leakage Protection: | Type B RCD AC 30mA +DC 6mA |
| Protection Level: | IP65 | Port: | Shenzhen,Foshan,etc. |
| Highlight: | ev wall box,ev wall charger,home wallbox charger |
||
|
Rated Power
|
3.5KW
|
7KW
|
11KW
|
||
|
Size (H * W * D)
|
200*100*60mm
|
200*100*60mm
|
360*335*95mm
|
||
|
Weight
|
2.2kg
|
2.2kg
|
2.8kg
|
||
|
Input Voltage
|
AC220/380V 50Hz
|
AC220/380V 50Hz
|
AC380V 50Hz
|
||
|
Input Current
|
Each phase 0~16A
|
Each phase 0~16A
|
Each phase 0~16A
|
||
|
Output Voltage
|
AC 220/380V±20%
|
AC 220/380V±20%
|
AC 380V±20%
|
||
|
Output Current
|
0-16A
|
0-32A
|
0-16A
|
||
|

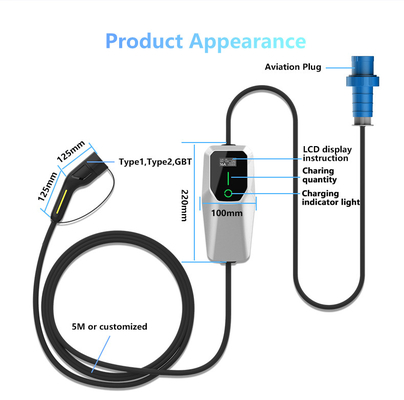

Plug Wire Length
|
5m (Customizable)
|
|
|
||
|
Plug Standard
|
Type-1/Type-2/GB/T (Customizable)
|
|
|
||
|

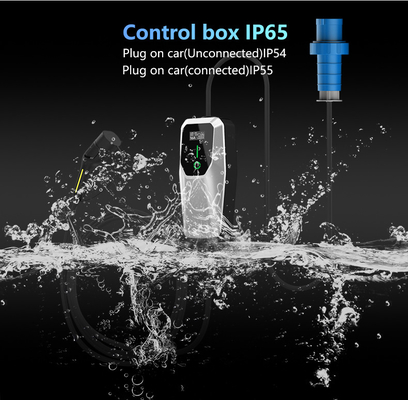

Protection Level
|
IP67
|
|
|
||
|
Operating Temperature
|
-20℃~60℃
|
|
|
||
|
Relative Humidity
|
5%~95%,No condensation
|
|
|
||
|
Lifespan
|
≥10000 times
|
|
|
||
|
