As a solution provider, we can help you calculate the cost of use and match the best product solution with the local policy.
|
Product Details:
|
| Interface Standard: | Type 2 | Output Current: | AC, 7KW 32A Max ; 11KW 16A Max ; 22KW 32A Max |
|---|---|---|---|
| Output Power: | 22kW | Input Voltage: | 380v, 7KW 220V ; 11KW 380V ; 22KW 380V |
| Installation Method: | Wall-mounted, Column (optional) | Start-up And Billing Method: | Plug&Charge/RFID/ APP |
| Charging Connector: | Type1,Type2,GB/T | Charging Standards: | IEC61851 IEC62196 |
| Size: | 202*104*388mm | Weight: | <6kg (Without Column) |
| Leakage Protection: | Type B RCD AC 30mA +DC 6mA | Protection Level: | IP65 |
| Port: | Shenzhen,Foshan,etc. | ||
| Highlight: | electric wall charger,electric car wall charger,electric car wall box |
||

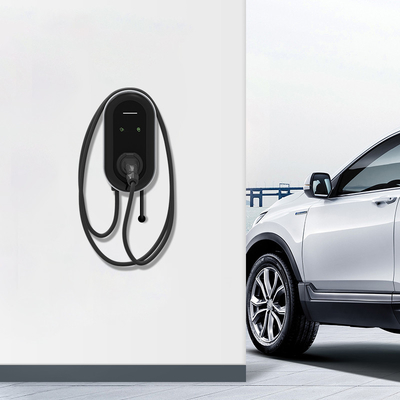

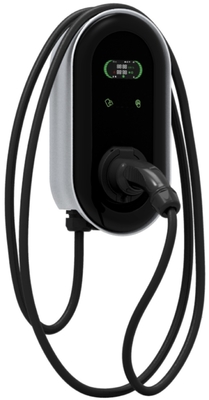

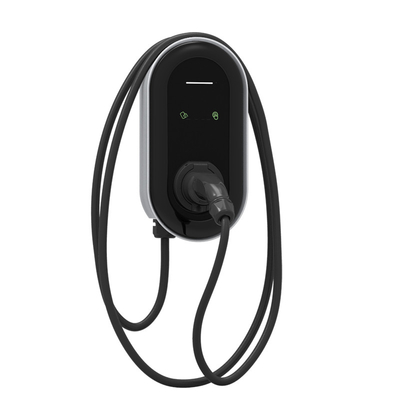

7Kw 11Kw 22Kw USA Europe UK France Portugal Wall Mount Charger Level 2 1 EV Charger
|
Model Numbers
|
AC 220V-7KW
|
AC 380V-11KW
|
AC 380V-22KW
|
||
|
Output Current
|
0~32A
|
0~16A
|
0~32A
|
||
|
Input Voltage
|
AC 220V 50/60HZ
|
AC 380V 50/60HZ
|
AC 380V 50/60HZ
|
||
|
Output Voltage
|
220V Single-phase
|
380Vac+/-10% Three-phase
|
380Vac+/-10% Three-phase
|
||
|
Charging Connector
|
Type1, Type2, GB/T
|
|
|
||
|
Charging Standard
|
IEC61851, IEC62196
|
|
|
||
|
Charging Mode
|
Plug&Charge/RFID/ APP/OCPP
|
|
|
||
|
Size
|
202*104*388mm
|
|
|
||
|
Weight
|
<6kg (Without column)
|
|
|
||
|
Input Line Length
|
Side open entry
|
|
|
||
|
Leakage Protection
|
Type B RCD AC 30mA +DC 6mA
|
|
|
||
|
Plug Wire Length
|
5M (Customizable)
|
|
|
||
|
Connection Method
|
Method C (Plug wire version)
|
|
|
||
|
Lndicator Light
|
LED Status Light
|
|
|
||
|
Protection Level
|
IP65
|
|
|
||
|
Operation Temperature
|
-20℃ - 55℃
|
|
|
||
|
Working Humidity
|
5%-95%
|
|
|
||
|
Installation Method
|

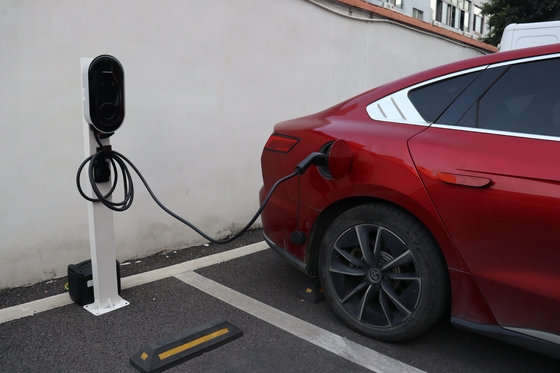

Wall, Column (optional)
|
|
|
||
|
Altitude Limitation
|
≤2000m
|
|
|
||
|
Operation Life
|
≥10000
|
|
|
||
