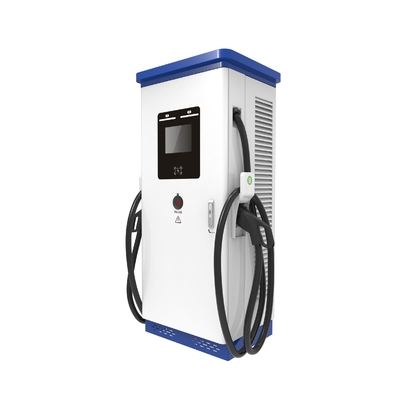

180KW 240KW Home Smart Fast Dc Charger For Ev EU UK DE FR

Large Image : 180KW 240KW Home Smart Fast Dc Charger For Ev EU UK DE FR

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	KIWI
Model Number:	Commercial EV Charger

Payment & Shipping Terms:

Minimum Order Quantity:	2 pieces
Price:	$8,999.00 - $25,999.00/pieces
Packaging Details:	Carton/wooden box
Supply Ability:	10000 Piece/Pieces per Month

Contact Now

180KW 240KW Home Smart Fast Dc Charger For Ev EU UK DE FR

Description

Interface Standard:	Type1 , Type2 , CCS , CHAdeMO , GB/T	Output Current:	500A Max
Output Power:	60KW 120KW 150KW	Input Voltage:	AC 380V, AC380V 50/60Hz
Output Volta:	DC 200V~1000V	Output Curren:	0~200A, 0~400A, 0~500A
Charging Connector:	CCS1 / CCS2 / CHAdeMO / GBT	Charging Standard:	IEC61851 IEC62196, ISO15118
Charging Mode:	Plug&Charge/ RFID/ APP/OCPP 1 .5j/1 .6j	Size:	7003401670mm
Weight:	>258kg	Leakage Protection:	RCD AC 30m
Plug Wire Length:	5M ( Customizable)	Port:	Shenzhen,Foshan,etc.
Highlight:	240KW home ev dc charger , home dc charger for ev , 180KW fast dc charger for ev

Upgrade Your Charging Stations with 180KW 240KW Smart EV Charger in KIWI EU UK DE FR

Shenzhen Kiwi Technology Co., Ltd.

As a solution provider, we can help you calculate the cost and match the best product solution with the local policy for you.

Questions Before Browsing

⚪ Where is your location?

⚪ What are the popular car models in your location?

⚪ How many EVs are expected to be parked in your parking lot?

⚪ Do you get the permission to install EV charging stations?

Why DC Fast Chargers

Taking an electric vehicle with 80kWh of power and 15kWh of power consumption for 100KM as an example, the vehicle can complete 60kWh power replenishment in about one hour, so that it can be drived for 400KM (theoretically), which reduces the waiting time of users on the one hand, and on the other hand, it can also help you serve more users in limited parking spaces.

Some Cases for You

Solar EV Charging Station

AC 22KW *8 & DC 120KW *10 & DC 240kw *10

Government Offices Parking Lot

DC 60KW *10

For DC chargers above 60KW, basically used as commercial fast charging, we listed some commonly used use scenarios in the picture above, if you also want to operate a fast charging station, We have four suggestions for you: ⚪ DC fast charging can complete the charging of the car very quickly, there will be a lot of cars in and out of your charging station every day, so you must have a perfect management system to avoid poor user experience. ⚪ Due to the different models of different vehicles and the different charging power that can be accepted, your DC charger must be compatible with a variety of output power. ⚪ The charging station is basically in the open air environment, your charger must be sturdy and durable, and the failure rate should be low. ⚪ If you want to have a fast charging station, you must understand the local policy and complete the installation by a qualified and licensed construction team.

Products Description

Output power	60KW	120KW	150KW
Output Current	0 ~ 200A	0 ~ 400A	0 ~ 500A
Input Voltage	AC 380V 50/60HZ
Output Voltage	DC 200V ~ 1000V
Charging Connector	CCS1 / CCS2 / CHAdeMO / GBT
Charging Standard	EC61851, IEC62196, ISO15118
Charging Mode	Plug&Charge / RFID / APP / OCPP(1 .5J / 1.6J)
Size	700 * 340 * 1670mm
Weight	>258kg
Input Current Range	AC 0 ~ 182A, 50mm cable	AC 0 ~ 230A, 75mm cable	AC 0 ~ 280A, 90mm cable
Leakage Protection	RCD AC 30mA
Plug Wire Length	5M ( Customizable)
Cooling Method	Wind cooling
Protection Level	IP54
Operation Temperature	-20C ~ 55 ℃
Relative Humidity	5%-95%
Installation Method	Floor, column ( optional)
Altitude Limitation	≤ 2000m
Operation Life	≥ 10000
More Parameters	Click here for more parameters

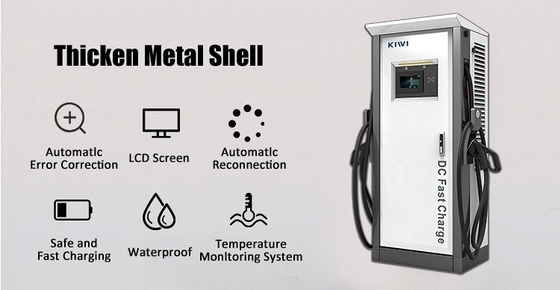

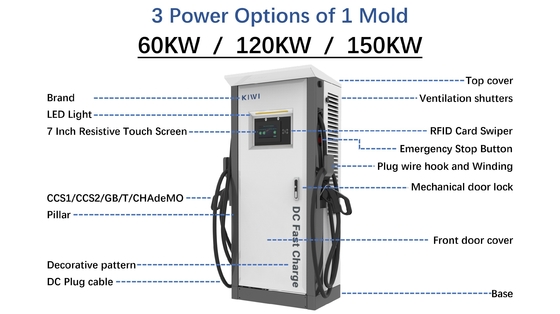

Real Shot of Appearance

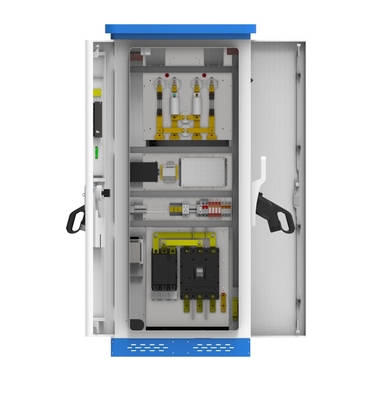

Real Shot of Interior

Customizable Options

We will recommend you different charging guns according

to your location or provide charging guns according to your needs

Please contact us to discuss the details of the solution

Why Choose Us

Shenzhen Kiwi Technology Co.,Ltd.

Our company a high-tech enterprise specializing in complete ev charging solution from high-quality AC EV wallboxes, reliable DC EV fast charging stations with robust connectivity, App/PC operation software to innovative on-demand ev charging systems. Kiwi has 4 production bases with modern workshops, complete production line and advanced testing equipments. One of them is covered more than 26,000㎡. Kiwi has passed 1S09001, ISO14001 and ISO16949 certification.

The group has 2 sub-brands

Established 8 years ago

Global Sites 10+

Regional access certificate 15+

20+ R&D engineers

Served 29 countries

120

120+ experienced employees

330

330+ orders per year

2200

OCPP loading devices 2200+
