As a solution provider, we can help you calculate the cost of use and match the best product solution with the local policy.
|
Product Details:
|
| Interface Standard: | Type1 , Type2 , CCS , CHAdeMO , GB/T | Output Current: | 100A Max |
|---|---|---|---|
| Output Power: | 30KW | Input Voltage: | 380V ±15% |
| Display Function: | 4.3 Inch True Color Capacitive Touch Screen | Efficiency: | Fully Loaded State≥95% |
| Installation Method: | Wall Mount / Ground Mount | Start-up And Billing Method: | Plug&Charge / RFID / APP / Ocpp |
| Charging Connector: | Type1 , Type2 , CCS , CHAdeMO , GB/T | Output Voltage Range: | DC 30V Max |
| Cooling Method: | Wind Cooling | Protection Leve: | IP54 |
| Plug Wire Length: | 3M (Customizable) | Operation Life: | ≥10000 |
| Port: | Shenzhen,Foshan,etc. | ||
| Highlight: | 30kw dc ev charger,Dc Ev Charger Home,car home charging point CHAdeMO |
||
|
Item
|
Specifications
|
|
|
|
Output Power
|
30KW
|
40KW
|
|
|
lnput Voltage Range(AC)
|
380V ±15%
|
|
|
|
Max Input Current
|
50A
|
|
|
|
Output Voltage Range(DC)
|
200-750V
|
|
|
|
Output Current
|
0-100A
|
0-133A
|
|
|
Navigation
|
Voice navigation throughout the operation, fault indication
|
|
|
|
Optional Function
|
Credit card / QR code / 4G module (support We Chat / Alipay )
|
|
|
|

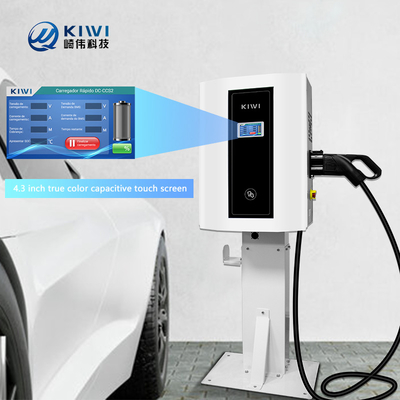

Display Function
|
4.3 inch true color capacitive touch screen
|
|
|
|
Charger Cable Length
|
3M(can be customized)
|
|
|
|
Efficiency
|
Fully loaded state≥95%
|
|
|
|
Auxiliary Power
|
12V
|
|
|
|
Working temperature
|
-40~85℃,25℃(TYPE); Intelligent derate if the case
|
|
|
|

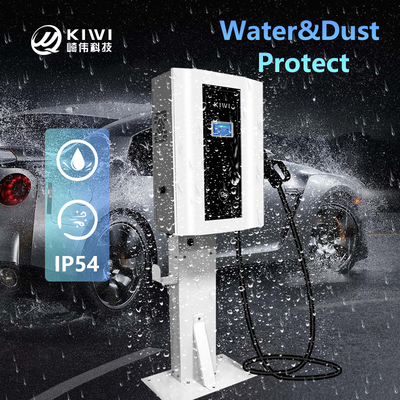

Protection Level
|
IP54
|
|
|
|
Dimension(mm)
|
548x378× 250mm
|
|
|
|
Weight(KG)
|
42KG
|
|
|
|
OCPP
|
JSON 1.6(Optional)
|
|
|
|

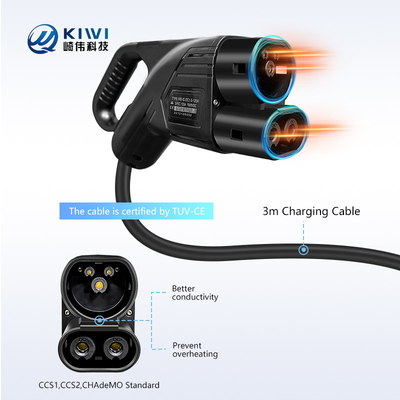

Charging interface
|
CCS1 / CCS2 / Chademo / GBT compatible
|
|
|
