Product Details:
|
| Interface Standard: | CCS1, CCS2, CHAdeMO, GB/T | Output Current: | 0-600A |
|---|---|---|---|
| Output Power: | 320KW ~ 1200KW | Input Voltage: | AC 380V 50/60H |
| Output Voltage Range: | DC150~1000V | Input Voltage Range: | AC 304~485V |
| Installation Method: | Floor-standing Installation | Grid Frequency: | 50Hz ±10Hz |
| Working Temperatue: | -40°C~+65°C | IP Protection Level: | IP54 |
| Cooling Method: | Wind Cooling | Port: | Shenzhen,Foshan,HK,etc. |
| Highlight: | diy dc ev charger,120KW dc ev charger for home,160KW dc ev charger for home |
||
|
Model
|
320KW
|
600KW
|
720KW+
|
||
|
Charging Unit
|
4
|
4
|
6
|
||
|
Charging Gun
|
4 / 8
|
4 / 8
|
6 / 12
|
||
|
Output Capacity of Each Unit
|
40KW ~ 80KW
|
30KW ~ 120 KW
|
30KW ~ 180 KW
|
||
|
Output Current
|
1064A
|
1600A
|
2400A
|
||
|
Output Voltage
|
DC 150V ~ 1000V (Constant power range 300V ~ 1000V)
|
|
|
||
|
Input Voltage Range
|
AC 304V ~ 485V
|
|
|
||
|
Installation Method
|
Floor-standing
|
|
|
||
|
Start-up and Billing Method
|
RFID / plug and charge / QR Code / Credit card
|
|
|
||
|

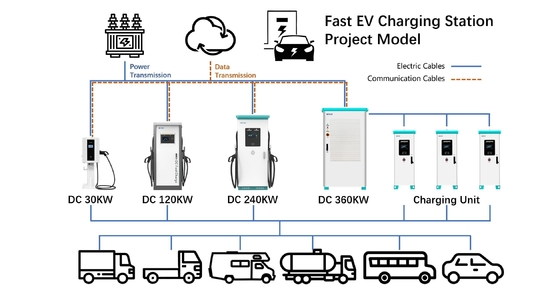

Power Distribution Mode
|
Standalone mode, Plug switch, Master-slave mode
|
|
|
||
|
Input Voltage
|
AC 380V ±20%(ABC+N+PE)
|
|
|
||
|
Grid Frequency
|
50Hz ±10Hz
|
|
|
||
|
Power-on Input Impulse Current
|
≤ Maximum input current 120%
|
|
|
||
|
Input Protection
|
Overvoltage, Undervoltage protection,
Lightning protection, Phase loss detection
|
|
|
||
|
Input Break
|
With AC 30mA leakage plastic case
|
|
|
||
|
Output Voltage
|
DC 200V ~ 1000V
|
|
|
||
|
Steady Flow Accuracy
|
≤ ±0.5%
|
|
|
||
|
Ripple Factor
|
≤ ±0.5%
|
|
|
||
|
Temperature Coefficient
|
≤ ±0.2%
|
|
|
||
|
Effectiveness
|
≥ 95%
|
|
|
||
|
Power Factor
|
≥ 0.98 (Above 50% load)
|
|
|
||
|
Export Insurance
|
250A
|
|
|
||
|
Working Temperature
|
-40°C ～ 65°C
|
|
|
||
|
Storage Temperature
|
-40°C～ 80°C
|
|
|
||
|
IP Protection Level
|
IP54
|
|
|
||
|
Wind Tunnel
|
Side in and side out
|
|
|
||
|
Cooling Method
|
Wind cooling
|
|
|
||
|
Base
|
Steel base
|
|
|
||
|
Size
|
2183*1163*1057 mm & 1067*692*392 mm
|
|
|
||
|

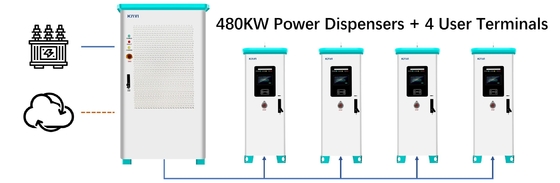

Maximum output
power of a single plug
|
The maximum power depends on the amount of current the plug wire can hold. Due to the intelligent power distribution of the system, theoretically the maximum power of the whole system can be used when charging only one vehicle
|
|
|
||
