Type 2 Wall Charger Box 7KW 11KW 22KW Level 1 2 EV EU UK FR Portugal

Type 2 Wall Charger Box 7KW 11KW 22KW Level 1 2 EV EU UK FR Portugal
Type 2 Wall Charger Box 7KW 11KW 22KW Level 1 2 EV EU UK FR Portugal Type 2 Wall Charger Box 7KW 11KW 22KW Level 1 2 EV EU UK FR Portugal Type 2 Wall Charger Box 7KW 11KW 22KW Level 1 2 EV EU UK FR Portugal Type 2 Wall Charger Box 7KW 11KW 22KW Level 1 2 EV EU UK FR Portugal Type 2 Wall Charger Box 7KW 11KW 22KW Level 1 2 EV EU UK FR Portugal Type 2 Wall Charger Box 7KW 11KW 22KW Level 1 2 EV EU UK FR Portugal

Large Image :  Type 2 Wall Charger Box 7KW 11KW 22KW Level 1 2 EV EU UK FR Portugal

Product Details:
Place of Origin: Guangdong, China
Brand Name: KIWI
Model Number: A02 (Wall Mounted)
Payment & Shipping Terms:
Minimum Order Quantity: 2 pieces
Price: $298.00 - $550.00/pieces
Packaging Details: Carton/wooden box
Supply Ability: 10000 Piece/Pieces per Month
Contact Now

Type 2 Wall Charger Box 7KW 11KW 22KW Level 1 2 EV EU UK FR Portugal

Description
Interface Standard: Type 2 Output Current: AC, 7KW 32A Max ; 11KW 16A Max ; 22KW 32A Max
Output Power: 22kW Input Voltage: 380v, 7KW 220V ; 11KW 380V ; 22KW 380V
Installation Method: Wall-mounted, Column (optional) Start-up And Billing Method: Plug&Charge/RFID/ APP
Charging Connector: Type1,Type2,GB/T Charging Standards: IEC61851 IEC62196
Size: 202*104*388mm Weight: <6kg (Without Column)
Leakage Protection: Type B RCD AC 30mA +DC 6mA Protection Level: IP65
Port: Shenzhen,Foshan,etc.
Highlight:

wall charger ev

,

wall box charger

,

type 2 wall charger

KIWI 2023 Home 7KW 11KW 22KW Level 1 2 EV Charger EU UK FR Portugal Wall Mount Smart EV Car Charging Stations​
Type 2 Wall Charger Box 7KW 11KW 22KW Level 1 2 EV EU UK FR Portugal 0
Shenzhen Kiwi Technology Co., Ltd.
As a solution provider, we can help you calculate the cost of use and match the best product solution with the local policy.
Type 2 Wall Charger Box 7KW 11KW 22KW Level 1 2 EV EU UK FR Portugal 1

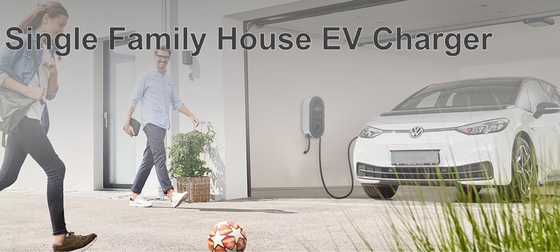

Why A Home Needs EV Chargers
Type 2 Wall Charger Box 7KW 11KW 22KW Level 1 2 EV EU UK FR Portugal 2
1,Convenient: Your electric vehicle can be charged at any time when you are at home without waiting in line.
2,Less cost: As usage grows, the cost of installing a charging station at home will be less than the cost of an outside charging station.
3,Greater value: A home with a pre-installed EV charger is an attractive prospect. It can make your home more desirable to buyers and help you sell it for more money.
Some Inquiries Before You Browsing
Type 2 Wall Charger Box 7KW 11KW 22KW Level 1 2 EV EU UK FR Portugal 3

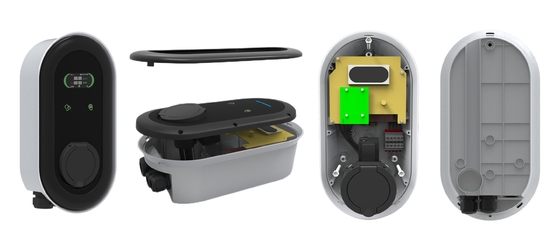

Products Description
Type 2 Wall Charger Box 7KW 11KW 22KW Level 1 2 EV EU UK FR Portugal 4
Type 2 Wall Charger Box 7KW 11KW 22KW Level 1 2 EV EU UK FR Portugal 5
Type 2 Wall Charger Box 7KW 11KW 22KW Level 1 2 EV EU UK FR Portugal 6
Type 2 Wall Charger Box 7KW 11KW 22KW Level 1 2 EV EU UK FR Portugal 7
Type 2 Wall Charger Box 7KW 11KW 22KW Level 1 2 EV EU UK FR Portugal 8
Parameters of model A and B are the same in the same power
Click here to request product photos of different product models.
Model Numbers
AC 220V-7KW
AC 380V-11KW
AC 380V-22KW
Output Current
0~32A
0~16A
0~32A
Input Voltage
AC 220V 50/60HZ
AC 380V 50/60HZ
AC 380V 50/60HZ
Output Voltage
220V Single-phase
380Vac+/-10% Three-phase
380Vac+/-10% Three-phase
Charging Connector
Type1, Type2, GB/T


Charging Standard
IEC61851, IEC62196


Charging Mode
Plug&Charge/RFID/ APP/OCPP


Size
202*104*388mm


Weight
<6kg (Without column)


Input Line Length
Side open entry


Leakage Protection
Type B RCD AC 30mA +DC 6mA


Plug Wire Length
5M (Customizable)


Connection Method
Method C (Plug wire version)


Lndicator Light
LED Status Light


Protection Level
IP65


Operation Temperature
-20℃ - 55℃


Working Humidity
5%-95%


Installation Method
Wall, Column (optional)


Altitude Limitation
≤2000m


Operation Life
≥10000


Customizable Options
Type 2 Wall Charger Box 7KW 11KW 22KW Level 1 2 EV EU UK FR Portugal 9
Type 2 Wall Charger Box 7KW 11KW 22KW Level 1 2 EV EU UK FR Portugal 10
We can provide all the products in the picture to
meet all your needs for home EV charging solutions.
Click here for a specific customized solution.
Type 2 Wall Charger Box 7KW 11KW 22KW Level 1 2 EV EU UK FR Portugal 11
Why Choose Us
Type 2 Wall Charger Box 7KW 11KW 22KW Level 1 2 EV EU UK FR Portugal 12
Shenzhen Kiwi Technology Co.,Ltd.
Our company a high-tech enterprise specializing in complete ev charging solution from high-quality AC EV wallboxes, reliable DC EV fast charging stations with robust connectivity, App/PC operation software to innovative on-demand ev charging systems. Kiwi has 4 production bases with modern workshops, complete production line and advanced testing equipments. One of them is covered more than 26,000㎡. Kiwi has passed 1S09001, ISO14001 and ISO16949 certification.



2
The group has 2 sub-brands



8
Established 8 years ago



10
Global Sites 10+



15
Regional access certificate 15+



20
20+ R&D engineers



29
Served 29 countries



120
120+ experienced employees



330
330+ orders per year



2200
OCPP loading devices 2200+
Type 2 Wall Charger Box 7KW 11KW 22KW Level 1 2 EV EU UK FR Portugal 13
Type 2 Wall Charger Box 7KW 11KW 22KW Level 1 2 EV EU UK FR Portugal 14
Type 2 Wall Charger Box 7KW 11KW 22KW Level 1 2 EV EU UK FR Portugal 15
Type 2 Wall Charger Box 7KW 11KW 22KW Level 1 2 EV EU UK FR Portugal 16
Our sales teams come from different countries who are dedicated to provide the best product and service in EV charger industry for you.
Type 2 Wall Charger Box 7KW 11KW 22KW Level 1 2 EV EU UK FR Portugal 17
Our elite engineers have more than 10 years experience that they can solve your professional questions of EV charger.
Type 2 Wall Charger Box 7KW 11KW 22KW Level 1 2 EV EU UK FR Portugal 18
We have 100% real professional factory, if we both have the sincerity of cooperation, we will definitely give you the most competitive price.
Type 2 Wall Charger Box 7KW 11KW 22KW Level 1 2 EV EU UK FR Portugal 19
We welcome communication from people all over the world, whether you end up buying from us or not.
Type 2 Wall Charger Box 7KW 11KW 22KW Level 1 2 EV EU UK FR Portugal 20
Type 2 Wall Charger Box 7KW 11KW 22KW Level 1 2 EV EU UK FR Portugal 21
Type 2 Wall Charger Box 7KW 11KW 22KW Level 1 2 EV EU UK FR Portugal 22
